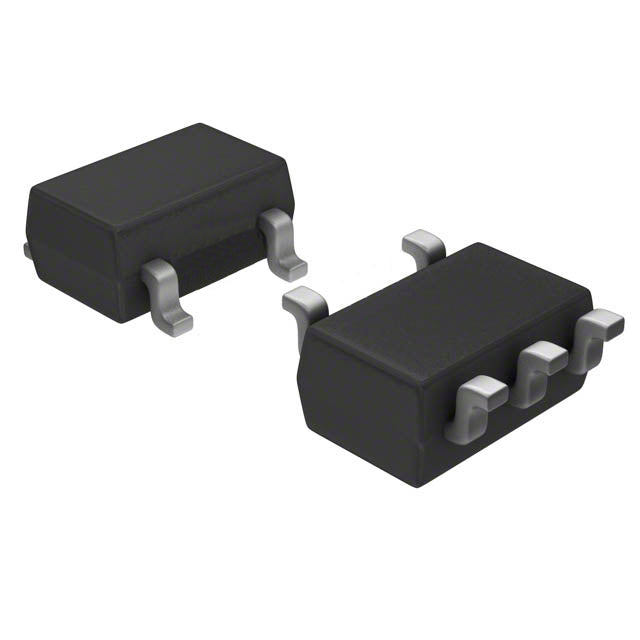

Analog Devices Inc./Maxim Integrated MAX8878EUK36+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.30 | $5.30 |
| 15+ | $1.22 | $18.30 |
| 25+ | $1.20 | $30.00 |
| 50+ | $1.13 | $56.50 |
| 100+ | $1.00 | $100.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 μA |
| Current - Supply (Max) | 100 μA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The Analog Devices MAX8878EUK36+T is a fixed 3.6V low dropout linear regulator capable of delivering 150mA. With a typical dropout of only 0.165V and a quiescent current of 180 μA, it is well-suited for battery-powered portable devices. The SOT-23-5 package makes it ideal for space-constrained designs.
- Ultra-Low Dropout: 0.165V at 150mA maximizes battery life in portable applications.
- Low Quiescent Current: 180 μA reduces standby power consumption.
- Fixed 3.6V Output: Simplifies design for 3.6V rails without external components.
- Compact SOT-23-5: Saves board space in miniaturized devices.
Portable Audio Players
For MP3 players and portable DACs, the MAX8878 provides a clean 3.6V rail with low dropout, minimizing power loss and preserving audio quality.
Wearable Devices
Smartwatches and fitness trackers benefit from the small SOT-23-5 package and low quiescent current (180 μA), extending battery life.
Bluetooth Modules
BLE modules require a stable 3.6V supply. This LDO's low dropout (0.165V) ensures reliable operation even as the battery discharges.
Wireless Sensors
In IoT sensor nodes, the MAX8878 regulates 3.6V for microcontrollers and RF transceivers, with low quiescent current reducing idle power.
Digital Cameras
For image sensors and processors, the low dropout and stable output ensure consistent performance during high-current bursts.
Handheld GPS Units
The MAX8878 powers GPS receivers and displays, with low dropout maximizing battery utilization in portable navigation devices.
- Q: What is the output voltage of the MAX8878EUK36?
- A: The MAX8878EUK36 provides a fixed output voltage of 3.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.6V up to 6.5V (absolute maximum). For regulation, input must be at least 3.6V plus dropout.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.165V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 180 μA.
- Q: What package is available?
- A: The MAX8878EUK36 is available in a SOT-23-5 package.
