Analog Devices Inc./Maxim Integrated MAX8900AEWV+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.78 | $6.78 |
| 15+ | $6.57 | $98.55 |
| 25+ | $6.43 | $160.75 |
| 50+ | $6.07 | $303.50 |
| 100+ | $5.36 | $536.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Voltage |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1.2A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.3V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

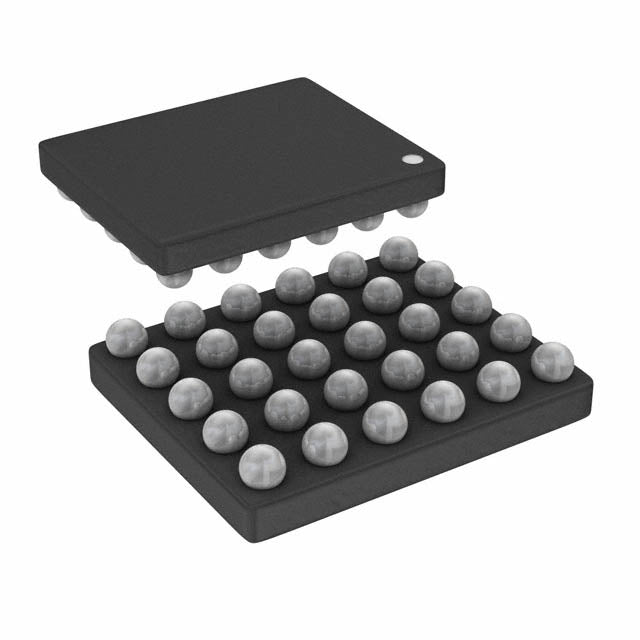

| Package / Case | 30-WFBGA, WLBGA |
| Supplier Device Package | 30-WLP |
| ROHS |  |
The MAX8900AEWV+T is a dedicated single-cell Lithium Ion/Polymer battery charger from Analog Devices. It delivers a programmable charge current up to 1.2A for a 4.2V battery, making it suitable for space-constrained portable electronics. The device includes over-voltage protection and operates across a wide -40°C to 85°C temperature range. Its compact 30-WFBGA package is designed for modern wearable and handheld applications.
- Compact WLBGA package enables miniaturized PCB designs for wearables and IoT modules.
- Wide -40°C to 85°C operating range supports outdoor and industrial-adjacent deployments.
- Integrated over-voltage protection safeguards the single-cell Li-Poly pack from charging faults.
- 1.2A charge current balances charge time with thermal management in small devices.
Compact Wearable Devices
The single-cell Lithium Ion/Polymer support and 1.2A charge current make it ideal for smartwatches and fitness bands where space is limited and fast charging is needed.
Portable Medical Monitors
With a wide operating temperature range of -40°C to 85°C, this charger can be used in portable medical equipment that may be exposed to varying environmental conditions.
Bluetooth Headsets
The 4.2V battery voltage and small WLBGA package allow for integration into small form-factor audio accessories, ensuring reliable charging in tight enclosures.
Handheld POS Terminals
Retail and logistics handheld devices benefit from the robust over-voltage protection and consistent 1.2A charging for single-cell Li-Poly batteries.
Smart Home Sensors
IoT sensors deployed in residential settings can leverage the wide temperature tolerance and compact package for always-ready battery maintenance.
- Q: What battery chemistry does the MAX8900AEWV+T support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can this charger handle?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery voltage rating?
- A: The battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What package is the MAX8900AEWV+T available in?
- A: It comes in a 30-WFBGA, WLBGA package.
