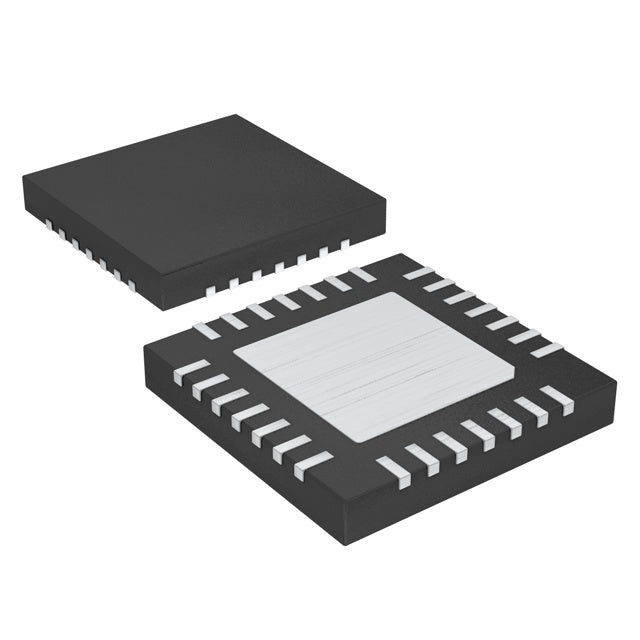

Analog Devices Inc./Maxim Integrated MAX8903DETI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.38 | $9.38 |
| 15+ | $9.08 | $136.20 |
| 25+ | $8.88 | $222.00 |
| 50+ | $8.39 | $419.50 |
| 100+ | $7.40 | $740.00 |
| N+ | $1.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | Smart Power Selector™ |
| Packaging | Factory | Tube |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 4.1V |
| Voltage - Supply (Max) | 16V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (4x4) |
| ROHS |  |
The MAX8903DETI+ is a USB-compatible battery charger IC from Analog Devices/Maxim Integrated for single-cell Lithium Ion batteries. It provides a charge current up to 2A with a 4.1V battery voltage. Featuring integrated Over Voltage protection and a USB interface, this charger is available in a 28-WFQFN package. It operates over an ambient temperature range of -40°C to 85°C, making it suitable for a wide range of portable consumer electronics.
- Fast USB Charging: Supports up to 2A charge current for quick battery replenishment.
- Integrated Safety: Over Voltage protection helps prevent damage to the battery and system.
- Compact Design: The 28-WFQFN package is ideal for space-constrained portable devices.
- Wide Operating Range: Functions reliably from -40°C to 85°C ambient temperature.
Smartphones and Tablets
Charge single-cell Lithium Ion batteries in mobile devices at up to 2A via USB, providing a fast and efficient charge cycle.
Portable Gaming Devices
Supports the 4.1V Li-Ion battery packs in handheld gaming consoles, ensuring reliable USB charging.
Bluetooth Speakers
Ideal for charging the internal Li-Ion battery in portable speakers, with overvoltage protection for enhanced safety.
Digital Cameras and Camcorders
Provides a robust charging solution for Li-Ion batteries in photography equipment, with a wide operating temperature range.
Wearable Technology
Its compact 28-WFQFN package makes it suitable for charging Li-Ion batteries in smartwatches and fitness bands.
- Q: What battery chemistry does the MAX8903DETI+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 4.1V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface.
MAX8903DETI+.pdf
