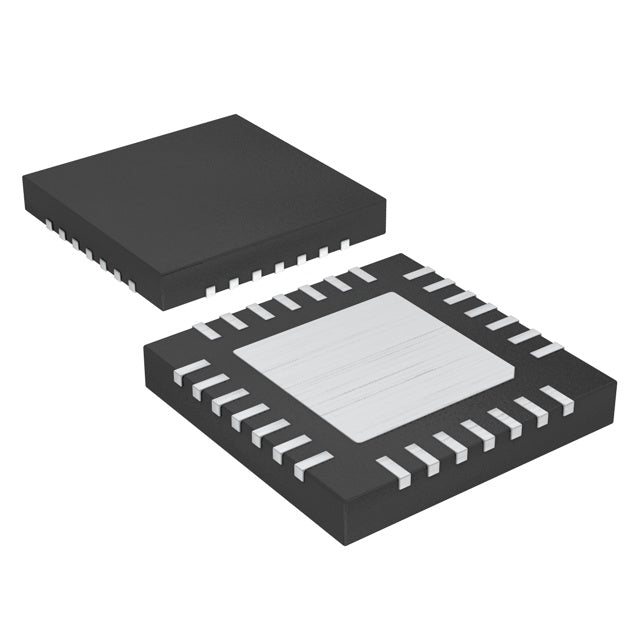

Analog Devices Inc./Maxim Integrated MAX8903JETI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.86 | $18.86 |
| 15+ | $4.34 | $65.10 |
| 25+ | $4.25 | $106.25 |
| 50+ | $4.01 | $200.50 |
| 100+ | $3.54 | $354.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | Smart Power Selector™ |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 4.35V |
| Voltage - Supply (Max) | 16V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (4x4) |
| ROHS |  |
The MAX8903JETI+ from Analog Devices is a USB-compatible battery charger IC for single-cell Lithium Ion batteries. It supports a charge current up to 2A and a battery voltage of 4.35V. The device includes over-voltage protection and operates over an ambient temperature range of -40°C to 85°C. Housed in a 28-WFQFN exposed pad package, this charger is designed for portable consumer electronics that require reliable USB-based charging.
- USB interface: Simplifies integration with standard USB power sources for consumer devices.
- High charge current: 2A capability enables rapid charging of single-cell batteries.
- Over-voltage protection: Safeguards the battery from excessive voltage conditions.
- Wide ambient range: -40°C to 85°C operation supports various environmental conditions.
Smartphones and Tablets
With USB interface and 2A charge capability, this IC is ideal for fast-charging single-cell Li-ion batteries in modern mobile devices.
Portable Bluetooth Speakers
The 4.35V high-voltage cell support and USB compatibility make it suitable for charging internal batteries in wireless speakers.
Wearable Devices
Its compact 28-WFQFN package and single-cell support are well-suited for smartwatches and fitness trackers that require USB charging.
Digital Cameras
Cameras with USB-C or micro-USB charging ports can benefit from the 2A charge current for faster turnaround between shoots.
Handheld Gaming Consoles
The USB interface simplifies charging circuit design for portable gaming devices, while over-voltage protection ensures safe operation.
- Q: What battery chemistry does the MAX8903JETI+ support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.35V.
- Q: What interface does it use?
- A: It uses a USB interface for control.
- Q: What is the operating temperature range?
- A: The ambient temperature range is -40°C to 85°C.
