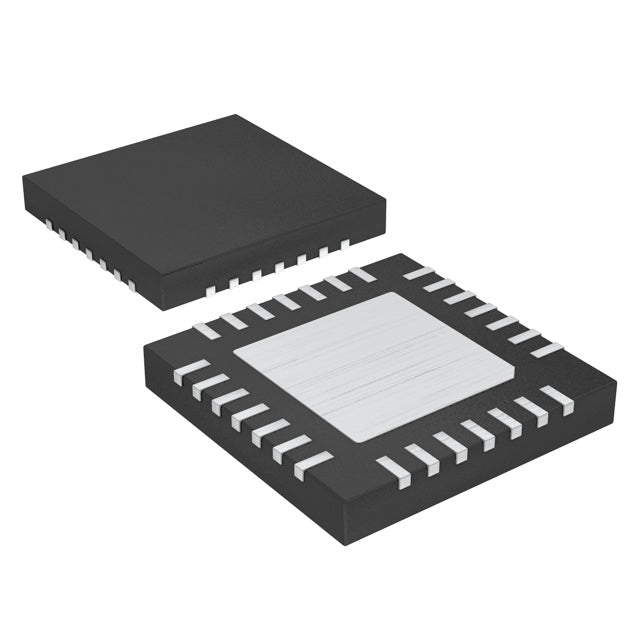

Analog Devices Inc./Maxim Integrated MAX8903JETI+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.76 | $10.76 |
| 15+ | $10.42 | $156.30 |
| 25+ | $10.20 | $255.00 |
| 50+ | $9.63 | $481.50 |
| 100+ | $8.50 | $850.00 |
| N+ | $1.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | Smart Power Selector™ |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 4.35V |
| Voltage - Supply (Max) | 16V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (4x4) |
| ROHS |  |
The Analog Devices MAX8903JETI+T is a single-cell Lithium Ion battery charger with a USB interface. It supports a charge current of up to 2A for a 4.35V battery. The device includes over voltage protection and operates over an industrial temperature range of -40°C to 85°C. It is available in a compact 28-WFQFN package, making it ideal for space-constrained portable applications.
- USB Charging: Designed for direct USB power input, simplifying charger design for portable devices.
- Fast Charge: Provides up to 2A charge current for rapid battery charging.
- High Voltage Cell Support: Supports 4.35V Li-Ion cells for increased capacity.
- Wide Temperature Range: Operates from -40°C to 85°C for versatile applications.
USB-Powered Devices
Charge single-cell Li-Ion batteries directly from a USB port, with up to 2A current for fast charging.
Smartphones and Tablets
Integrate into mobile devices to manage battery charging from USB sources, ensuring safe operation with over voltage protection.
Portable Media Players
Provide reliable charging for Li-Ion batteries in media players, leveraging the compact 28-WFQFN package.
Bluetooth Accessories
Charge batteries in wireless earbuds and headsets, using the USB interface for convenient power input.
Handheld Gaming Devices
Support battery charging in portable gaming consoles, delivering up to 2A for quick power top-ups.
- Q: What battery chemistry does the MAX8903JETI+T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single-cell (1s) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.35V.
- Q: What interface does it use?
- A: It uses a USB interface for power input.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
MAX8903JETI+T.pdf
