Analog Devices Inc./Maxim Integrated MAX8934GETI+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.70 | $14.70 |
| 15+ | $3.39 | $50.85 |
| 25+ | $3.31 | $82.75 |
| 50+ | $3.13 | $156.50 |
| 100+ | $2.76 | $276.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | Smart Power Selector™ |
| Packaging | Marketplace | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.6V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

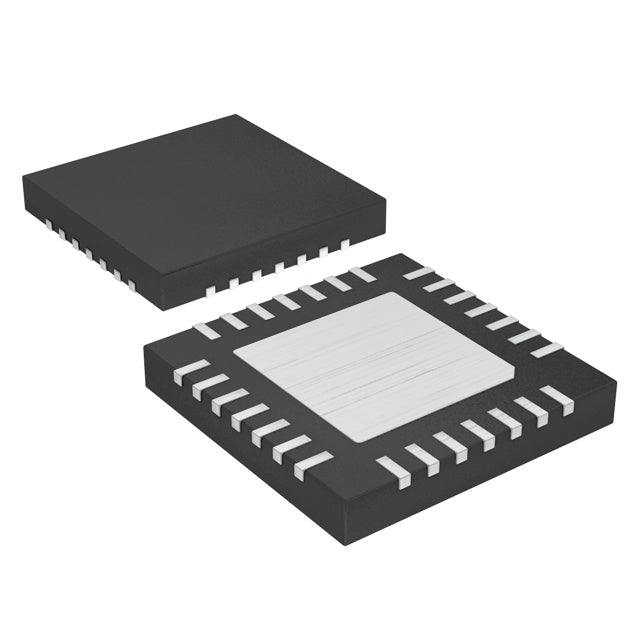

| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (4x4) |
| ROHS |  |
The Analog Devices MAX8934GETI+T is a linear battery charger designed for single-cell Lithium Ion/Polymer batteries. It delivers a charge current up to 1.5A with a target battery voltage of 4.2V. Featuring a USB interface, it is optimized for devices powered from USB sources. The charger includes over-voltage protection to ensure safe operation. It is available in a compact 28-WFQFN package, suitable for portable consumer electronics.
- USB Compatibility: Seamlessly integrates with standard USB power sources for convenient charging.
- Reliable Protection: Over-voltage protection prevents damage from power supply anomalies.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for various climates.
- Compact Footprint: The 28-WFQFN package is ideal for slim and portable designs.
USB-Powered Consumer Electronics
Perfect for devices like wireless earbuds, smartwatches, and digital cameras that are primarily charged from a USB port, providing a regulated 1.5A charge current for a single Li-Ion cell.
Portable Gaming Devices
Ensures safe and efficient charging of handheld gaming consoles. The over-voltage protection is crucial for safeguarding the battery from USB power surges.
Bluetooth Speakers
Ideal for portable speakers where a USB interface is standard. The charger manages the 4.2V Li-Polymer battery safely, extending battery life.
Point-of-Sale (POS) Terminals
Suitable for mobile POS devices that are frequently docked and charged via USB. The wide operating temperature range of -40°C to 85°C ensures reliability in various retail environments.
GPS Trackers and Wearables
Provides a compact charging solution for GPS trackers and fitness bands, with the 28-WFQFN package allowing for a small form factor.
- Q: What battery chemistry does the MAX8934GETI+T support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery pack voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection features are included?
- A: It includes Over Voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface for power input and control.
MAX8934GETI+T.pdf
- Q: What battery chemistry does the MAX8934GETI+T support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery pack voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection features are included?
- A: It includes Over Voltage protection.
- Q: What interface does it use?
- A: It uses a USB interface for power input and control.
