NXP USA Inc. MBMI7014TA2AE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.77 | $22.77 |
| 15+ | $5.23 | $78.45 |
| 25+ | $5.12 | $128.00 |
| 50+ | $4.84 | $242.00 |
| 100+ | $4.27 | $427.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tray | |
| Function | Multi-Function Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 7 ~ 14 |
| Fault Protection | Over Temperature, Over/Under Voltage |
| Interface | I2C, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

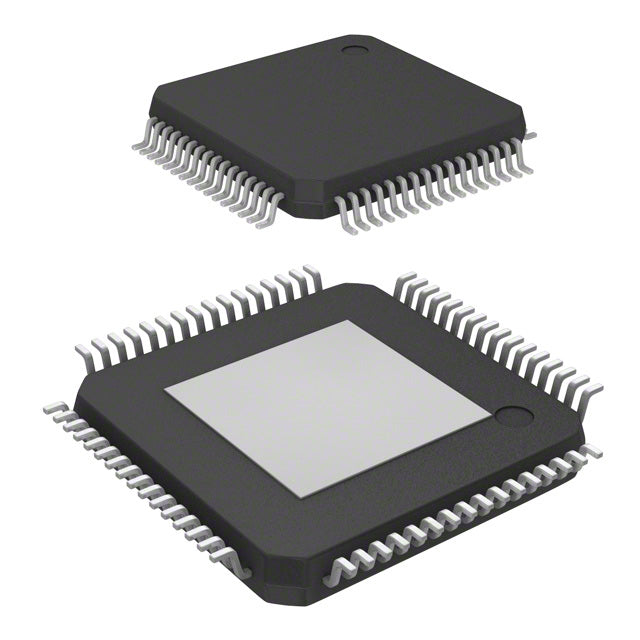

| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The MBMI7014TA2AE from NXP USA Inc. is a Multi-Function Controller for Lithium Ion battery packs with 7 to 14 cells. It offers comprehensive protection including Over Temperature and Over/Under Voltage. With both I2C and SPI interfaces, it provides flexible communication for automotive and industrial applications. Housed in a 64-LQFP Exposed Pad package, it operates over a wide junction temperature range of -40°C to 150°C.
- High Cell Count Support: Manages 7 to 14 Lithium Ion cells, ideal for high-voltage battery packs.
- Comprehensive Protection: Includes Over Temperature and Over/Under Voltage protection for enhanced safety.
- Flexible Communication: Offers both I2C and SPI interfaces for easy integration with various host controllers.
- Extreme Temperature Range: Rated for -40°C to 150°C junction temperature, suitable for automotive and industrial environments.
Electric Vehicle Battery Management
For EV battery packs with 7-14 Lithium Ion cells, the MBMI7014TA2AE provides robust Over Temperature and Over/Under Voltage protection, essential for safety in automotive environments.
Energy Storage Systems (ESS)
In stationary ESS, this Multi-Function Controller manages 7-14 cell modules, using I2C or SPI for flexible integration with system controllers, ensuring reliable operation across extreme temperatures.
High-Capacity Power Tools
For professional power tools requiring 7-14 Li-Ion cells, this controller delivers the necessary protection and monitoring, with a wide temperature range suitable for demanding work sites.
Industrial Battery Backup (UPS)
In UPS systems, the MBMI7014TA2AE monitors 7-14 cell Li-Ion batteries, providing Over/Under Voltage and Over Temperature safeguards to ensure continuous, safe operation.
Automotive Auxiliary Battery Systems
For 48V or high-voltage auxiliary systems in vehicles, this controller's -40°C to 150°C junction temperature rating supports harsh under-hood conditions.
- Q: What is the function of the MBMI7014TA2AE?
- A: It is a Multi-Function Controller for battery management.
- Q: Which battery chemistries are supported?
- A: It supports Lithium Ion batteries.
- Q: How many cells can this controller manage?
- A: It supports 7 to 14 cells.
- Q: What fault protection features does it include?
- A: It provides Over Temperature and Over/Under Voltage protection.
- Q: What communication interfaces are available?
- A: It supports both I2C and SPI interfaces.
- Q: What is the operating temperature range?
- A: The junction temperature range is -40°C to 150°C (TJ).
