NXP USA Inc. MBMI7018SA1AE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.54 | $18.54 |
| 15+ | $4.26 | $63.90 |
| 25+ | $4.17 | $104.25 |
| 50+ | $3.94 | $197.00 |
| 100+ | $3.47 | $347.00 |
| N+ | $0.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tray | |
| Function | Battery Balancing |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 4 ~ 18 |
| Fault Protection | Over Temperature, Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -20°C ~ 60°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

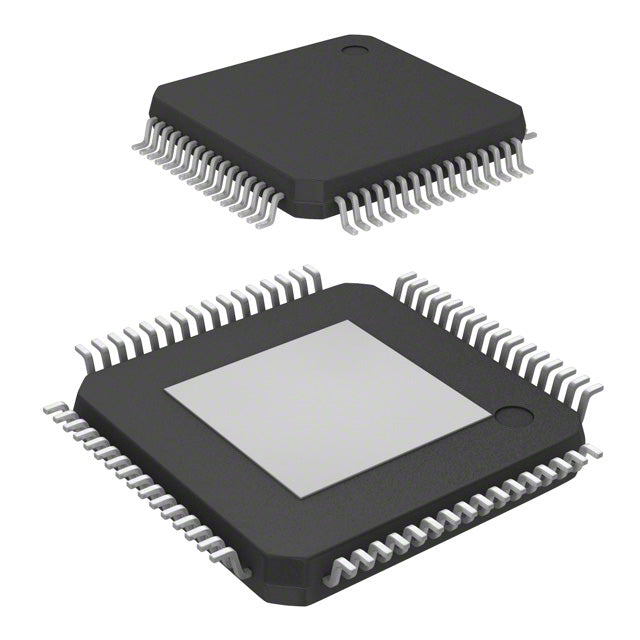

| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The MBMI7018SA1AE from NXP is a specialized battery balancing IC for Lithium Ion battery packs, supporting configurations from 4 to 18 cells. It provides critical fault protection, including over temperature and over/under voltage, to safeguard the battery pack. With an SPI interface for communication, it integrates easily into a battery management system. Housed in a 64-LQFP package, this IC is designed for applications like electric vehicles and energy storage systems, operating within a temperature range of -20°C to 60°C.
- High Cell Count Support: Manages from 4 to 18 cells, making it versatile for various large-format battery packs.
- Comprehensive Protection: Includes over temperature and over/under voltage protection to enhance battery safety and reliability.
- Efficient Balancing: Provides active battery balancing to ensure all cells are at equal charge, maximizing pack capacity and lifespan.
- Standard SPI Interface: Facilitates easy communication with a host microcontroller for monitoring and control.
Electric Vehicle (EV) Battery Packs
Ideal for managing and balancing large Lithium Ion battery packs in electric vehicles, ensuring cell voltage uniformity across 4 to 18 cells to maximize pack life and safety.
Energy Storage Systems (ESS)
Used in residential and commercial energy storage systems, providing active cell balancing and protection for Lithium Ion racks, enhancing system reliability and longevity.
High-Capacity Power Tools
Suitable for professional-grade power tools that use multi-cell Lithium Ion packs, ensuring balanced charging and discharging for consistent performance and extended runtime.
Electric Bicycles and Scooters
Applied in e-bike and e-scooter battery packs, this IC helps maintain cell balance during frequent charge/discharge cycles, improving safety and battery lifespan.
Backup Power for Telecom
Used in telecom base stations with large Lithium Ion battery banks, providing essential balancing and protection to ensure reliable backup power in a controlled temperature environment.
- Q: What is the function of the MBMI7018SA1AE?
- A: It is a battery balancing IC designed for multi-cell battery packs.
- Q: Which battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it manage?
- A: It supports between 4 and 18 cells.
- Q: What fault protection features does it include?
- A: It includes over temperature and over/under voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: The operating temperature range is -20°C to 60°C (TA).
