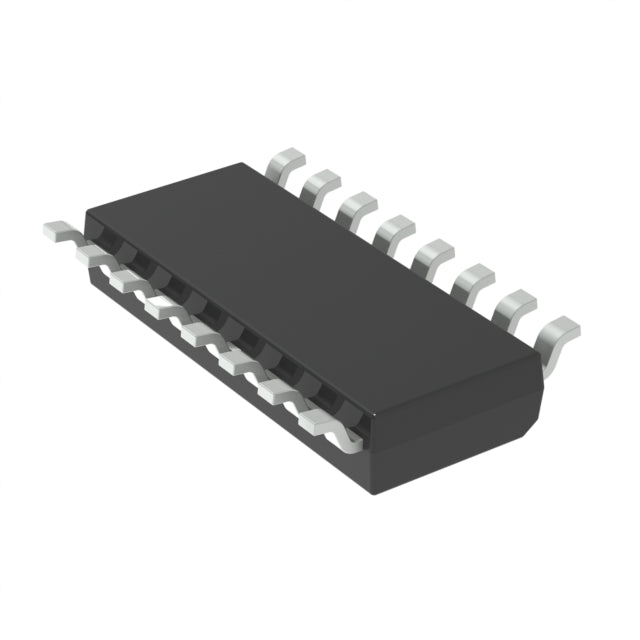

onsemi MC100LVEL34D
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Type | Clock Generator |
| PLL | - |
| Input | ECL |
| Output | ECL |
| Number of Circuits | - |
| Ratio - Input:Output | - |
| Differential - Input:Output | - |
| Frequency - Max | 1.5GHz |
| Divider/Multiplier | - |
| Voltage - Supply | 3V ~ 3.8V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
The MC100LVEL34D from onsemi is a high-speed clock generator with ECL input and output, supporting frequencies up to 1.5GHz. Designed for differential signaling, it ensures low jitter and skew in demanding applications. The 16-SOIC package and -40°C to 85°C range make it suitable for industrial and telecom environments.
- High Frequency: 1.5GHz capability for advanced high-speed systems.
- ECL Logic: Differential outputs reduce noise and improve signal integrity.
- Wide Temperature Range: -40°C to 85°C for harsh environments.
- Standard Package: 16-SOIC is widely available and easy to integrate.
High-Speed Data Communication
The 1.5GHz ECL outputs are ideal for clocking SerDes transceivers in fiber-optic and backplane applications, ensuring low skew.
Telecom Switching
Used in SONET/SDH equipment to generate line-rate clocks, maintaining signal integrity over long distances.
Aerospace Electronics
The wide temperature range and ECL logic make it suitable for avionics systems requiring robust high-frequency clocks.
Test Equipment
In high-end oscilloscopes and bit error rate testers, it provides precise timing references for measurement accuracy.
Radar Systems
Generates local oscillator clocks for phased-array radar, supporting fast beam steering and signal processing.
- Q: What type of device is the MC100LVEL34D?
- A: It is a Clock Generator, designed for high-frequency clock distribution and generation.
- Q: Does it include a PLL?
- A: The technical data does not specify PLL support; it may be a divider or buffer-based generator.
- Q: What are the input and output types?
- A: Both input and output are ECL (Emitter-Coupled Logic), providing differential signaling for high-speed applications.
- Q: How many circuits does it have?
- A: The number of circuits is not specified in the provided data.
- Q: What is the maximum frequency?
- A: It supports frequencies up to 1.5GHz, suitable for high-speed data links.
- Q: What is the package and temperature range?
- A: It comes in a 16-SOIC package and operates from -40°C to 85°C.
