Motorola MC14046BFL2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Motorola |
| Product Series | |
| Packaging | Bulk | |
| Type | Phase Lock Loop (PLL) |
| PLL | Yes |
| Input | CMOS |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 1.9MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SOEIAJ |
| ROHS |  |

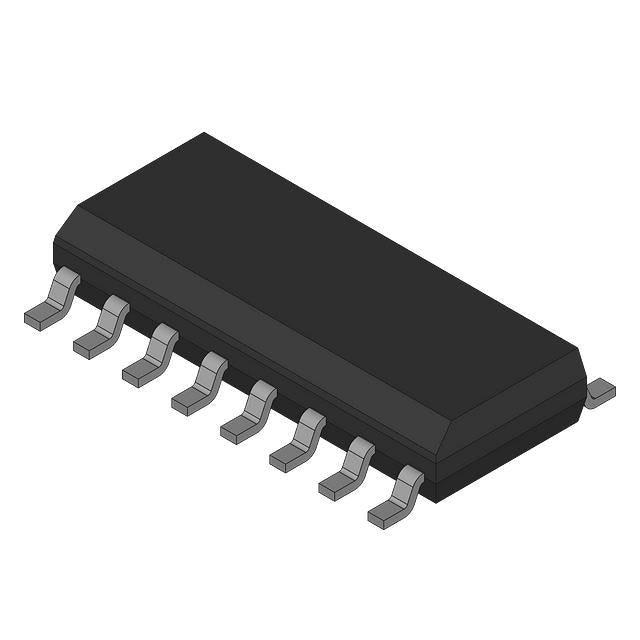

The MC14046BFL2 is a classic Phase Lock Loop (PLL) IC from Motorola, designed for low-frequency analog and digital applications. With a single circuit supporting up to 1.9MHz, it provides reliable phase and frequency locking. Featuring CMOS inputs and outputs, it operates over a wide -55°C to 125°C range. Housed in a 16-SOIC package, it is ideal for motor control, tone decoding, and frequency demodulation.
- Wide Temperature Range: Operates from -55°C to 125°C, suitable for extreme environments.
- Low Power CMOS: CMOS technology ensures low power consumption, ideal for battery-powered devices.
- Versatile PLL: Can be used for frequency multiplication, division, and demodulation.
- Proven Reliability: Classic Motorola design with a long history of reliable operation.
Motor Speed Control
Use the MC14046BFL2 in motor control circuits for phase-locked speed regulation, ensuring precise and stable RPM in industrial and automotive applications.
Frequency Demodulation
Deploy in FM demodulation circuits for analog communication systems, recovering the original signal from a frequency-modulated carrier.
Tone Decoding
Implement in tone detection and decoding circuits for telephony and remote control systems, filtering specific frequencies from a mixed signal.
Data Synchronization
Apply in low-speed data communication systems to recover clock signals from data streams, ensuring proper synchronization between transmitter and receiver.
Clock Multiplication and Division
Use in digital systems to generate multiplied or divided clock frequencies from a reference oscillator, enabling flexible timing architectures.
Analog-to-Digital Conversion
Integrate into ADC systems to provide a stable sampling clock, improving conversion accuracy and reducing noise in measurement applications.
- Q: What type of device is the MC14046BFL2?
- A: It is a Phase Lock Loop (PLL) from Motorola.
- Q: Does it include a PLL?
- A: Yes, it includes a PLL.
- Q: What are the input and output types?
- A: Both input and output types are CMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 1.9MHz.
- Q: What is the operating temperature range and package?
- A: It operates from -55°C to 125°C (TA) and comes in a 16-SOIC (0.209", 5.30mm Width) package.
