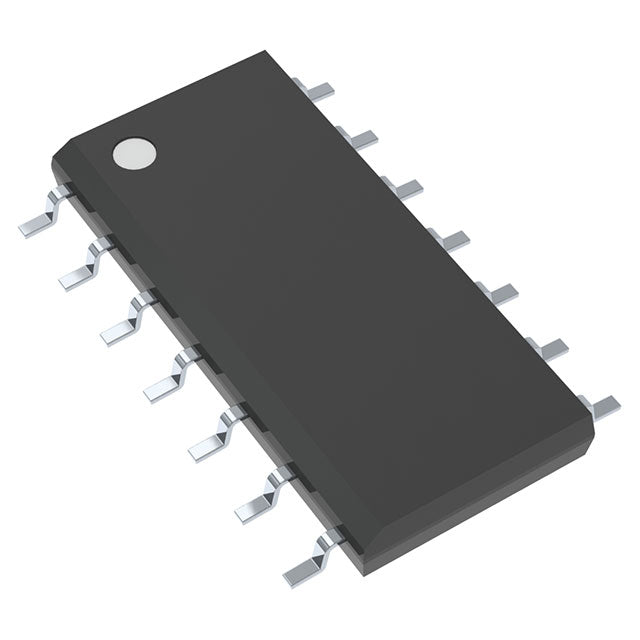

onsemi MC14077BDG
Regular price
$1.01
Regular price
$1.06
Sale price
$1.01
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.01 | $1.01 |
| 15+ | $0.98 | $14.70 |
| 25+ | $0.95 | $23.75 |
| 50+ | $0.90 | $45.00 |
| 100+ | $0.80 | $80.00 |
| N+ | $0.16 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 4000B |
| Packaging | Factory | Tube |
| Logic Type | XNOR (Exclusive NOR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 110ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC |
| Supplier Device Package | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MC14077BDG.pdf
×
