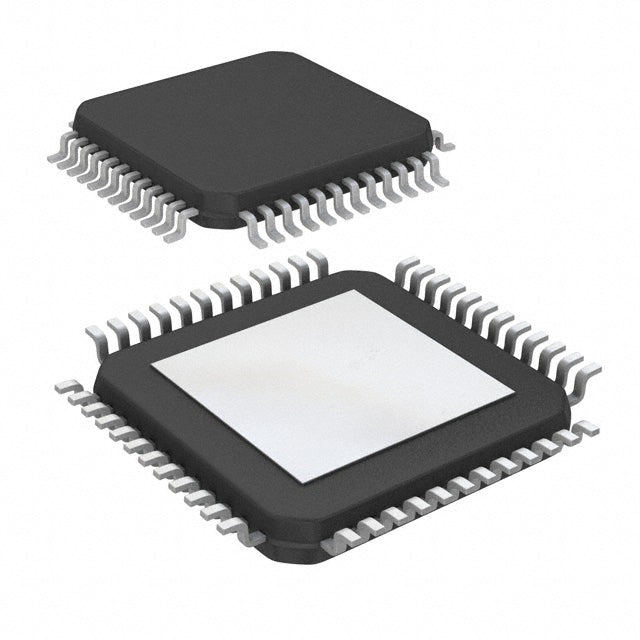

NXP USA Inc. MC33772BSA2AE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.20 | $23.20 |
| 15+ | $5.34 | $80.10 |
| 25+ | $5.22 | $130.50 |
| 50+ | $4.93 | $246.50 |
| 100+ | $4.35 | $435.00 |
| N+ | $0.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tray | |
| Function | Battery Cell Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 3 ~ 6 |
| Fault Protection | Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-HLQFP (7x7) |
| ROHS |  |
The MC33772BSA2AE from NXP is a high-reliability battery cell controller for lithium-ion batteries. It manages 3 to 6 cells with integrated over/under voltage protection. Designed for harsh environments, it operates from -40°C to 125°C and communicates via SPI. The 48-LQFP Exposed Pad package ensures excellent thermal performance for demanding applications.
- Extended Temperature Range: Operates from -40°C to 125°C for automotive and industrial use.
- Integrated Safety: Over/under voltage protection enhances battery safety.
- Reliable SPI Interface: Ensures robust communication with the host controller.
- Thermally Efficient Package: Exposed pad design aids in heat dissipation.
Automotive Battery Management
Monitor 3-6 cell lithium-ion packs in electric and hybrid vehicles, with automotive-grade temperature range and over/under voltage protection.
Grid-Scale Energy Storage
Manage battery modules in grid storage systems, using SPI for reliable communication in harsh environments.
Heavy-Duty Power Tools
Protect battery packs in industrial power tools, ensuring safe operation under extreme conditions.
Electric Marine Propulsion
Monitor battery banks in electric boats, providing reliable voltage monitoring in demanding marine environments.
Uninterruptible Power Supplies
Use in UPS systems for critical infrastructure, ensuring battery health and readiness.
- Q: What is the function of the MC33772BSA2AE?
- A: It is a Battery Cell Controller for lithium-ion batteries.
- Q: How many cells can it manage?
- A: It supports 3 to 6 cells in series.
- Q: What protection features does it have?
- A: It includes over/under voltage protection.
- Q: What interface does it use?
- A: It communicates via the SPI interface.
- Q: What is its operating temperature range?
- A: It operates from -40°C to 125°C (TA).
- Q: What package is available?
- A: It is offered in a 48-LQFP Exposed Pad package.
