NXP USA Inc. MC33772BSP1AER2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.34 | $27.34 |
| 15+ | $6.29 | $94.35 |
| 25+ | $6.16 | $154.00 |
| 50+ | $5.81 | $290.50 |
| 100+ | $5.13 | $513.00 |
| N+ | $1.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Cell Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 3 ~ 6 |
| Fault Protection | Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

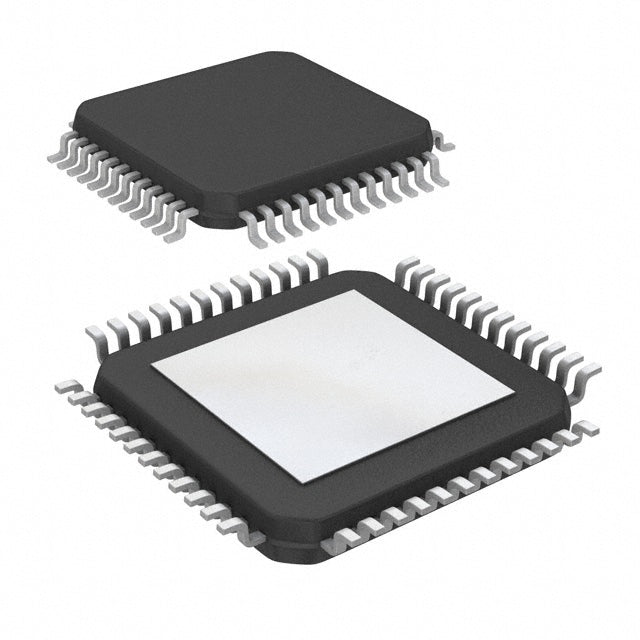

| Package / Case | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-HLQFP (7x7) |
| ROHS |  |
The MC33772BSP1AER2 from NXP is a Lithium Ion Battery Cell Controller for 3 to 6 cells. It includes Over/Under Voltage protection and an SPI interface. Rated for -40°C to 125°C, it is built for demanding automotive and industrial battery management applications. The 48-LQFP Exposed Pad package provides excellent thermal performance.
- Automotive-Grade Reliability: Operates across -40°C to 125°C for use in harsh environments.
- Accurate Cell Monitoring: Supports 3-6 cells with over/under voltage protection.
- High-Speed SPI: Enables efficient communication with the host microcontroller.
- Compact and Cool: 48-LQFP exposed pad package for space-saving and thermal management.
Automotive Battery Management Systems
Ideal for 48V and high-voltage EV battery packs, the wide temperature range and SPI interface support reliable operation in automotive environments.
Industrial Energy Storage Systems
Monitors 3-6 cell modules in grid storage and industrial backup systems, ensuring cell balance and protection against voltage faults.
Electric Two-Wheelers
Used in e-bikes and e-scooters for precise cell monitoring, enhancing safety and performance in urban mobility applications.
Portable Power Stations
Manages lithium-ion packs in portable generators and power stations, providing robust protection for consumer and professional use.
Robotics and AGVs
Supports battery packs in automated guided vehicles and robots, where reliable voltage monitoring is essential for uptime and safety.
- Q: What is the function of the MC33772BSP1AER2?
- A: It is a Battery Cell Controller for lithium-ion battery packs.
- Q: Which battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it monitor?
- A: It supports 3 to 6 cells in series.
- Q: What fault protection is included?
- A: It provides Over/Under Voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
MC33772BSP1AER2.pdf
- Q: What is the function of the MC33772BSP1AER2?
- A: It is a Battery Cell Controller for lithium-ion battery packs.
- Q: Which battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it monitor?
- A: It supports 3 to 6 cells in series.
- Q: What fault protection is included?
- A: It provides Over/Under Voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
