NXP USA Inc. MC33772BSP2AE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.17 | $26.17 |
| 15+ | $6.02 | $90.30 |
| 25+ | $5.89 | $147.25 |
| 50+ | $5.56 | $278.00 |
| 100+ | $4.91 | $491.00 |
| N+ | $0.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tray | |
| Function | Battery Cell Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 3 ~ 6 |
| Fault Protection | Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

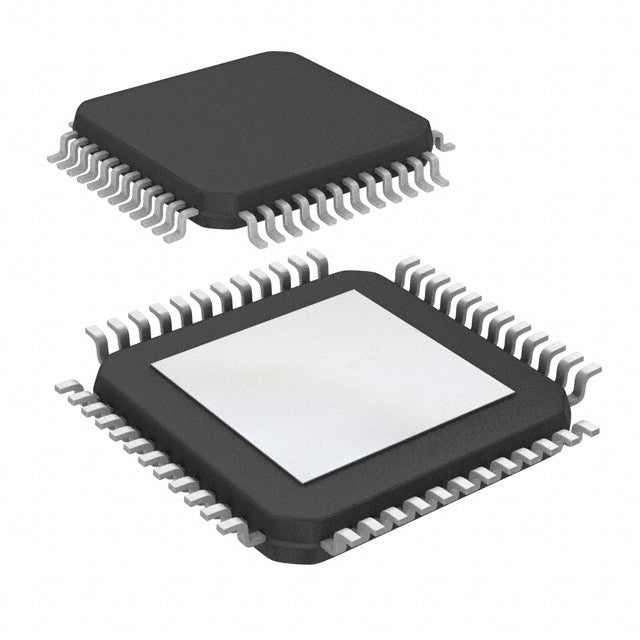

| Package / Case | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-HLQFP (7x7) |
| ROHS |  |
The NXP MC33772BSP2AE is a high-performance Battery Cell Controller engineered for lithium-ion battery packs. It monitors 3 to 6 cells, providing essential over/under voltage protection to ensure safe operation. Featuring an SPI interface for fast data transfer, this controller operates across a wide -40°C to 125°C range, making it suitable for demanding automotive and industrial applications. Housed in a 48-LQFP Exposed Pad package, it offers a compact solution for advanced battery management systems.
- Wide Temperature Operation: Rated from -40°C to 125°C, it reliably functions in extreme automotive and industrial environments.
- Precise Cell Monitoring: Supports 3-6 lithium-ion cells with over/under voltage protection, enhancing battery safety and lifespan.
- Fast SPI Communication: Enables high-speed data exchange with the host controller for real-time battery state analysis.
- Compact Package: The 48-LQFP Exposed Pad design facilitates efficient thermal management and space-saving PCB layouts.
Automotive Battery Management Systems (BMS)
With a wide -40°C to 125°C temperature range and SPI interface, this controller is ideal for 48V mild-hybrid and EV battery packs requiring robust cell monitoring in harsh under-hood conditions.
Industrial Energy Storage Systems (ESS)
Supporting 3-6 lithium-ion cells, it enables precise voltage monitoring in rack-mounted or containerized ESS, ensuring safe operation over extended temperature swings.
High-Capacity Power Tool Packs
The 6-cell capability and over/under voltage protection make it suitable for professional-grade power tools where battery longevity and safety are critical.
E-Bike and E-Scooter Battery Packs
Compact 48-LQFP package and SPI communication allow integration into space-constrained mobility battery packs, providing reliable cell supervision.
Backup Power and UPS Systems
Its ability to monitor multiple cells with high accuracy supports lithium-ion backup systems in data centers and telecom, where temperature resilience is essential.
- Q: What is the function of the MC33772BSP2AE?
- A: It is a Battery Cell Controller designed for precision monitoring and management of lithium-ion battery cells.
- Q: How many cells can this controller support?
- A: It supports 3 to 6 lithium-ion cells in series.
- Q: What fault protection features are included?
- A: It provides Over/Under Voltage protection for each cell.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication with the host microcontroller.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA), suitable for automotive and industrial environments.
- Q: What package is the MC33772BSP2AE available in?
- A: It comes in a 48-LQFP Exposed Pad package.
