NXP USA Inc. MC33772BSP2AER2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.39 | $24.39 |
| 15+ | $5.61 | $84.15 |
| 25+ | $5.49 | $137.25 |
| 50+ | $5.19 | $259.50 |
| 100+ | $4.58 | $458.00 |
| N+ | $0.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Cell Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 3 ~ 6 |
| Fault Protection | Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

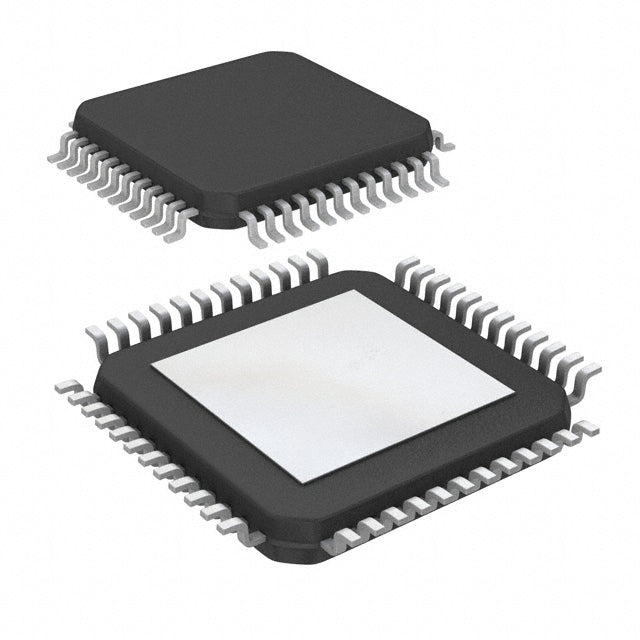

| Package / Case | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-HLQFP (7x7) |
| ROHS |  |
The NXP MC33772BSP2AER2 is a robust battery cell controller tailored for lithium-ion battery packs. It is engineered to monitor 3 to 6 cells, providing essential Over/Under Voltage protection. Communication is achieved through a high-speed SPI interface. This controller is built to withstand harsh environments, operating reliably from -40°C to 125°C. Its 48-LQFP Exposed Pad package is designed for efficient thermal management, making it a solid choice for automotive and industrial applications.
- Automotive-Grade Reliability: With a -40°C to 125°C operating range, it is built for the most demanding automotive and industrial environments.
- Efficient Communication: The SPI interface enables fast and reliable data transfer to the main system controller.
- Targeted Protection: Provides essential Over/Under Voltage protection to safeguard lithium-ion cells.
- Thermally Efficient Package: The exposed pad in the 48-LQFP package aids in heat dissipation for improved performance.
Automotive Battery Management Systems
The MC33772BSP2AER2 is designed for automotive applications, with a wide -40°C to 125°C temperature range suitable for under-hood and high-temperature environments.
Lithium-Ion Battery Packs
Specifically designed for lithium-ion chemistry, this controller is ideal for managing 3 to 6 cell packs in various applications.
Electric Vehicles (EVs) and Hybrids
Its robust temperature range and SPI interface make it suitable for EV and hybrid vehicle battery management systems.
High-Power Portable Equipment
For professional-grade power tools and equipment that demand reliable operation in harsh conditions, this controller provides essential monitoring.
Energy Storage Systems (ESS)
The controller can be used in residential or commercial ESS, where precise voltage monitoring is critical for safety and performance.
Industrial and Agricultural Vehicles
Forklifts, pallet jacks, and other industrial vehicles benefit from the rugged design and reliable communication of this battery cell controller.
- Q: What is the function of the MC33772BSP2AER2?
- A: It is a Battery Cell Controller for lithium-ion battery packs.
- Q: How many cells can it manage?
- A: It is designed to manage 3 to 6 cells in series.
- Q: What fault protection does it offer?
- A: It provides Over/Under Voltage protection.
- Q: What is the communication interface?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
- Q: What package is available?
- A: It is available in a 48-LQFP Exposed Pad package.
MC33772BSP2AER2.pdf
- Q: What is the function of the MC33772BSP2AER2?
- A: It is a Battery Cell Controller for lithium-ion battery packs.
- Q: How many cells can it manage?
- A: It is designed to manage 3 to 6 cells in series.
- Q: What fault protection does it offer?
- A: It provides Over/Under Voltage protection.
- Q: What is the communication interface?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
- Q: What package is available?
- A: It is available in a 48-LQFP Exposed Pad package.
