NXP USA Inc. MC33772BTA2AER2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.60 | $22.60 |
| 15+ | $5.20 | $78.00 |
| 25+ | $5.09 | $127.25 |
| 50+ | $4.80 | $240.00 |
| 100+ | $4.24 | $424.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Cell Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 3 ~ 6 |
| Fault Protection | Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

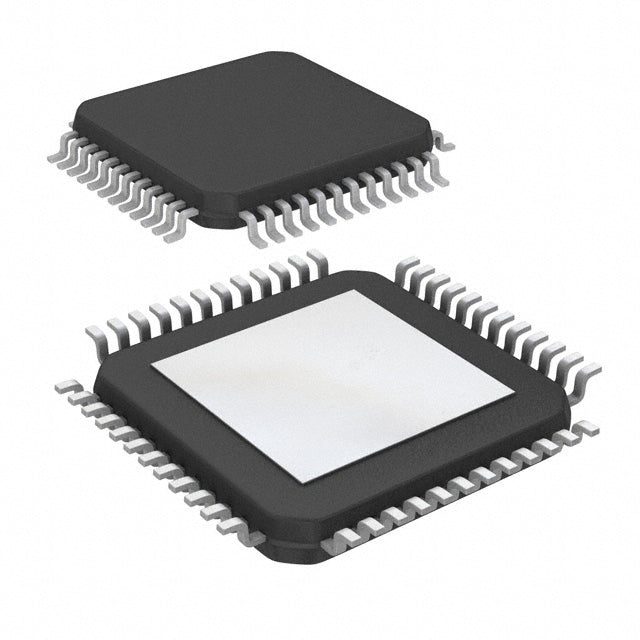

| Package / Case | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-HLQFP (7x7) |
| ROHS |  |
The NXP MC33772BTA2AER2 is a Battery Cell Controller for Lithium Ion battery packs. It monitors 3 to 6 cells and provides Over/Under Voltage protection. With an SPI interface and a wide operating temperature range of -40°C to 125°C, it is suitable for demanding automotive and industrial applications. The 48-LQFP Exposed Pad package ensures efficient heat dissipation.
- Wide temperature range: Operates from -40°C to 125°C, suitable for automotive and industrial environments.
- Precise cell monitoring: Supports 3-6 Lithium Ion cells for accurate voltage tracking.
- Fast communication: SPI interface enables high-speed data transfer to the host controller.
- Integrated protection: Over/Under Voltage protection helps safeguard the battery pack.
- Robust packaging: 48-LQFP Exposed Pad package provides excellent thermal performance.
Electric Vehicle Battery Management
Monitor 3-6 series Lithium Ion cells in EV battery packs. The wide -40°C to 125°C operating range ensures reliable performance in harsh automotive environments.
Energy Storage Systems
Manage cell voltages in residential or commercial energy storage. SPI interface allows for fast, reliable data transfer to the system controller for accurate state-of-charge estimation.
Industrial Battery Packs
Use in industrial equipment requiring robust battery monitoring. The 48-LQFP Exposed Pad package aids in thermal management during high-current operation.
Automotive Auxiliary Batteries
Monitor 12V or 24V auxiliary Lithium Ion batteries in vehicles. Over/Under Voltage protection helps prevent cell damage and extends battery life.
High-Cell-Count Portable Equipment
Ideal for high-performance portable devices using 3-6 cell packs. The SPI interface enables precise voltage monitoring for accurate fuel gauging.
- Q: What is the function of the MC33772BTA2AER2?
- A: It is a Battery Cell Controller designed for battery management systems.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it manage?
- A: It supports 3 to 6 cells in series.
- Q: What fault protection features does it include?
- A: It provides Over/Under Voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
