NXP USA Inc. MC33774ASP1AER2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.10 | $24.10 |
| 15+ | $5.55 | $83.25 |
| 25+ | $5.43 | $135.75 |
| 50+ | $5.13 | $256.50 |
| 100+ | $4.52 | $452.00 |
| N+ | $0.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Bulk | |
| Function | Multi-Function Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 4 ~ 18 |
| Fault Protection | Over Temperature |
| Interface | I2C, SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

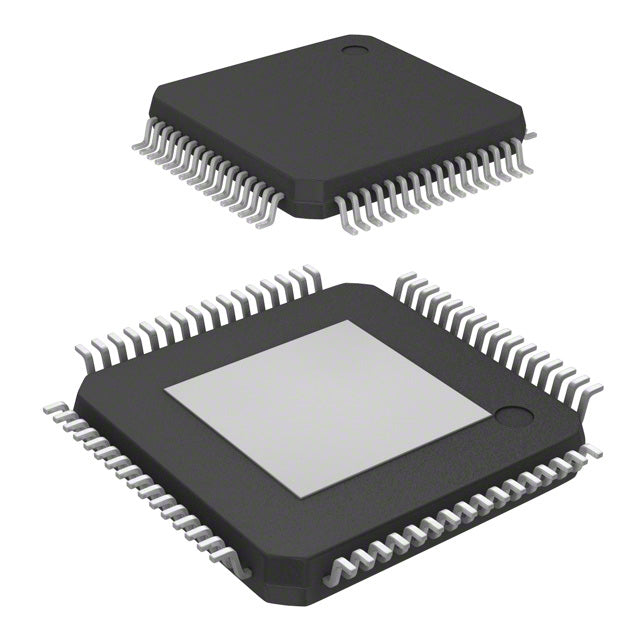

| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The NXP MC33774ASP1AER2 is a robust Multi-Function Controller for Lithium Ion battery management systems. It is designed to monitor and manage 4 to 18 cells, providing a scalable solution for various applications. This controller features Over Temperature protection to safeguard the battery pack. It offers both I2C and SPI communication interfaces, allowing for flexible system integration. With an operating temperature range of -40°C to 125°C, it is built to perform in demanding environments. The 64-LQFP Exposed Pad package ensures good thermal performance.
- Scalable Architecture: Supports 4 to 18 cells, making it adaptable for different battery pack sizes.
- High-Temperature Reliability: Rated for -40°C to 125°C, suitable for harsh automotive and industrial settings.
- Flexible Connectivity: Provides I2C and SPI options for easy integration with host controllers.
- Enhanced Safety: Includes Over Temperature protection to prevent thermal runaway.
Electric Vehicle (EV) Battery Packs
The MC33774ASP1AER2 is engineered for EV battery management, supporting 4-18 cells and operating reliably from -40°C to 125°C, which is essential for automotive applications.
Energy Storage Systems (ESS)
For residential and commercial ESS, this controller provides the necessary monitoring and management for large Lithium Ion battery banks, ensuring safety and longevity.
Hybrid Electric Vehicles (HEVs)
Its multi-cell support and robust temperature range make it suitable for the battery systems in HEVs, which require precise control and monitoring.
Industrial and Marine Applications
In electric boats and industrial vehicles, this controller's wide temperature tolerance and multi-cell capability ensure dependable battery management in challenging conditions.
Backup Power Systems
For critical backup power in data centers and hospitals, this controller helps maintain battery health and readiness, with Over Temperature protection adding a layer of safety.
High-Voltage Battery Packs
With support for up to 18 cells, it is well-suited for high-voltage packs used in performance vehicles and large-scale energy storage.
- Q: What is the function of the MC33774ASP1AER2?
- A: It is a Multi-Function Controller for battery management.
- Q: What battery chemistry is supported?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it handle?
- A: It supports 4 to 18 cells.
- Q: What fault protection does it provide?
- A: It includes Over Temperature protection.
- Q: What interfaces are available?
- A: It has both I2C and SPI interfaces.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
