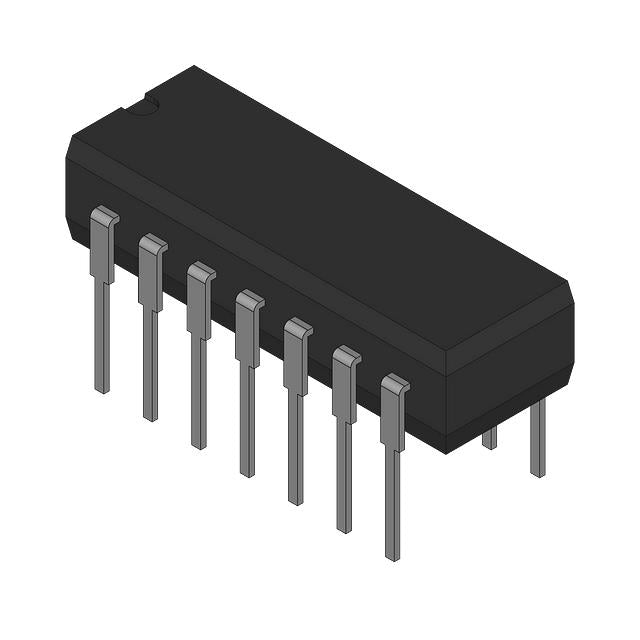

Motorola MC504L
Regular price
$14.02
Regular price
$14.76
Sale price
$14.02
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.02 | $14.02 |
| 15+ | $13.58 | $203.70 |
| 25+ | $13.28 | $332.00 |
| 50+ | $12.55 | $627.50 |
| 100+ | $11.07 | $1,107.00 |
| N+ | $2.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Motorola |
| Product Series | MC500 |
| Packaging | Bulk | |
| Part Status | Active |
| Logic Type | AND/OR/INVERT Gate |
| Number of Circuits | 1 |
| Number of Inputs | 9 Input (3, 3, 3) |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 20mA, 1.5mA |
| Voltage - Supply | 5V |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP |
MC504L.pdf
×
