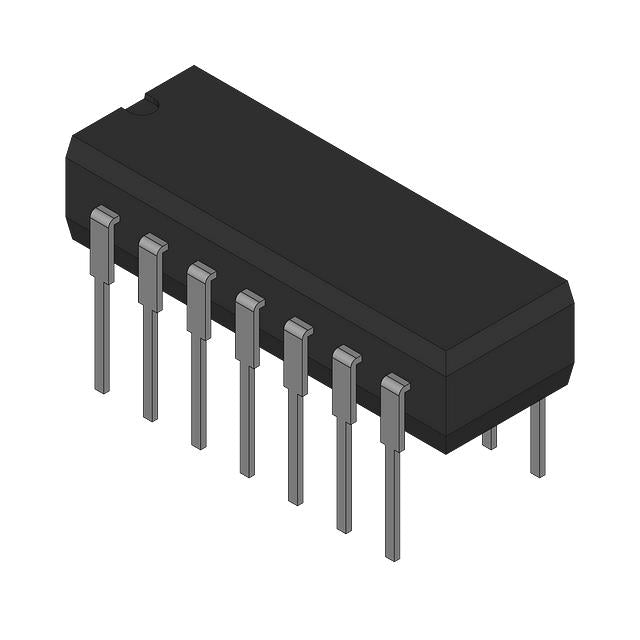

Motorola MC505L
Regular price
$14.57
Regular price
$15.34
Sale price
$14.57
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.57 | $14.57 |
| 15+ | $14.11 | $211.65 |
| 25+ | $13.81 | $345.25 |
| 50+ | $13.04 | $652.00 |
| 100+ | $11.51 | $1,151.00 |
| N+ | $2.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Motorola |
| Product Series | MC500 |
| Packaging | Bulk | |
| Part Status | Active |
| Logic Type | AND/OR/INVERT Gate |
| Number of Circuits | 1 |
| Number of Inputs | 8 Input (4, 4) |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 20mA, 1.5mA |
| Voltage - Supply | 5V |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | TO-116 |
MC505L.pdf
×
