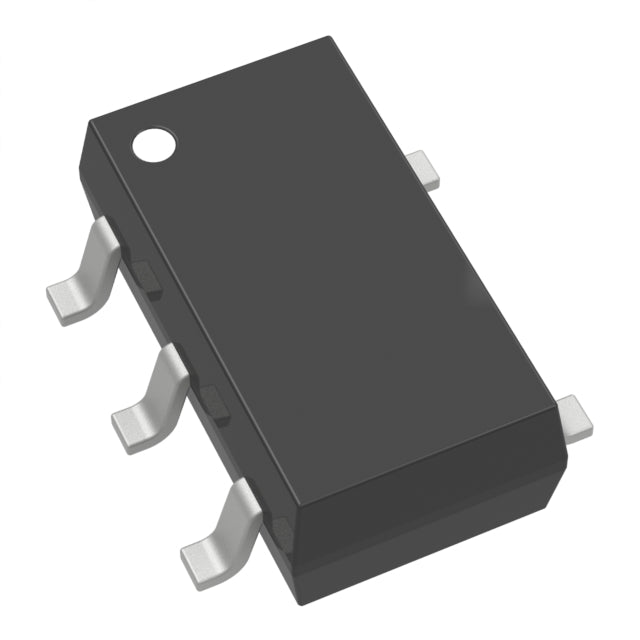

MCC (Micro Commercial Components) MC6230-3.6-TP
Regular price
$0.38
Regular price
$0.09
Sale price
$0.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.38 | $0.38 |
| 15+ | $0.08 | $1.20 |
| 25+ | $0.08 | $2.00 |
| 50+ | $0.08 | $4.00 |
| 100+ | $0.07 | $7.00 |
| N+ | $0.01 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | MCC (Micro Commercial Components) |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 10 µA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5L |
The MC6230-3.6-TP is a fixed 3.6V low dropout regulator with 300mA output capability. Featuring a low dropout of 0.15V at 150mA and 10µA quiescent current, it is optimized for battery-powered applications. The SOT-23-5L package ensures a compact footprint.
- Battery Optimized: 3.6V output matches Li-ion discharge curves.
- Low Dropout: 0.15V @ 150mA maintains regulation near end-of-battery-life.
- Low Noise: High PSRR reduces ripple for sensitive loads.
- Small Size: SOT-23-5L package for space-constrained designs.
Li-Ion Battery Devices
3.6V output is ideal for direct power from single-cell Li-ion batteries.
LED Drivers
Provides stable 3.6V bias for LED driver ICs in portable lighting.
RF Power Amplifiers
Clean 3.6V supply with high PSRR for RF PA stages.
Portable Audio
Low noise output for audio codecs and amplifiers requiring 3.6V.
Medical Wearables
Reliable 3.6V for continuous glucose monitors and health trackers.
Smart Meters
Efficient power for metering ICs in utility applications.
- Q: What is the output voltage of the MC6230-3.6-TP?
- A: The fixed output voltage is 3.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.15V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 10 µA.
- Q: What package is available?
- A: It comes in a SOT-23-5L package.
Base Product Number ：
MC6230-3.6
MC6230-3.6-TP.pdf
