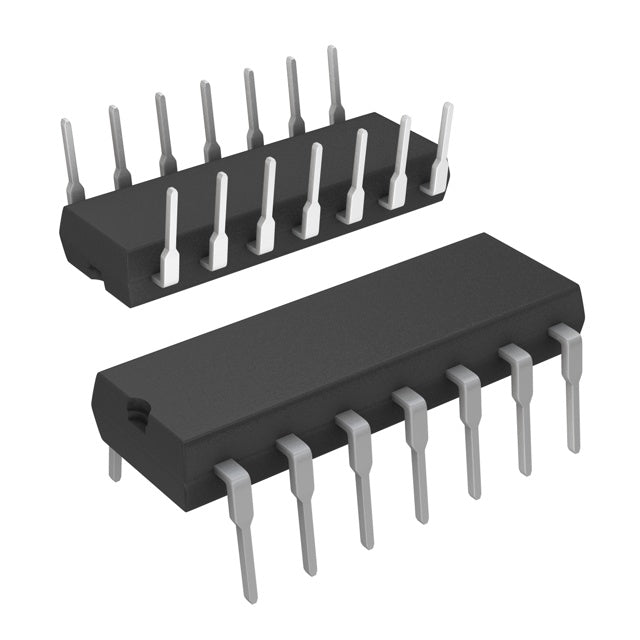

onsemi MC74AC14NG
Regular price
$1.24
Regular price
$0.31
Sale price
$1.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.24 | $1.24 |
| 15+ | $0.29 | $4.35 |
| 25+ | $0.28 | $7.00 |
| 50+ | $0.26 | $13.00 |
| 100+ | $0.23 | $23.00 |
| N+ | $0.05 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 74AC |
| Packaging | Tube | |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 6 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.5V ~ 1.1V |
| Input Logic Level - High | 2.2V ~ 3.9V |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-PDIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
MC74AC14NG.pdf
×
