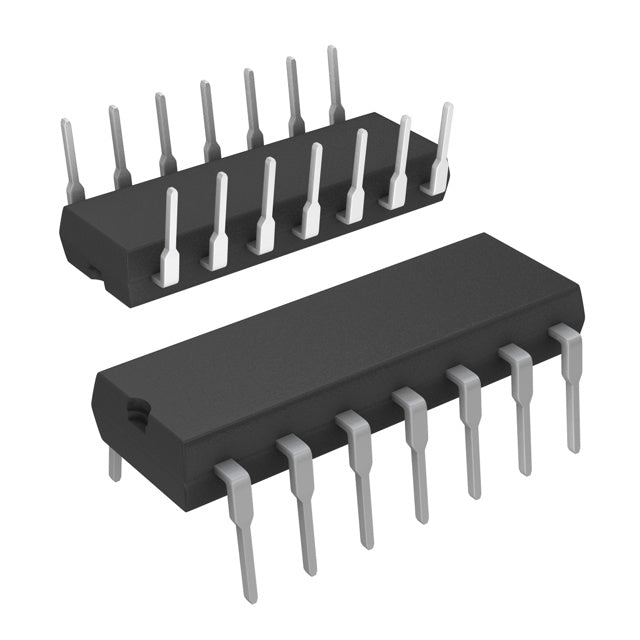

onsemi MC74ACT32NG
Regular price
$1.16
Regular price
$0.29
Sale price
$1.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.16 | $1.16 |
| 15+ | $0.27 | $4.05 |
| 25+ | $0.26 | $6.50 |
| 50+ | $0.25 | $12.50 |
| 100+ | $0.22 | $22.00 |
| N+ | $0.04 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 74ACT |
| Packaging | Tube | |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-PDIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
MC74ACT32NG.pdf
×
