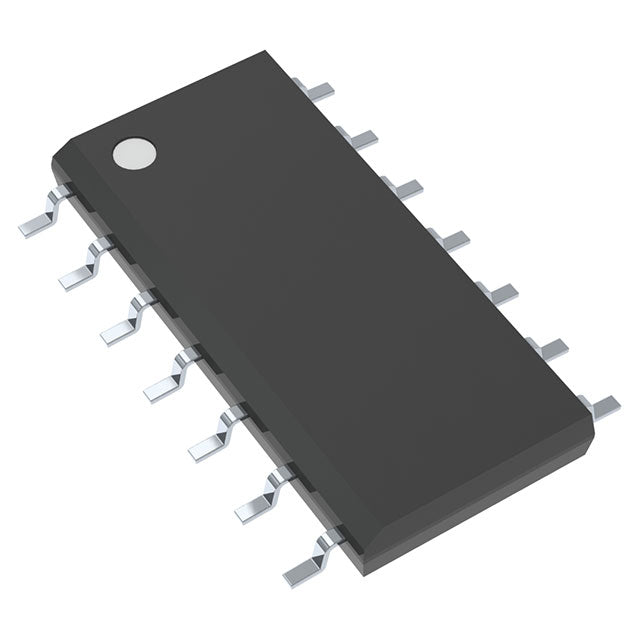

onsemi MC74ACT86DG
Regular price
$1.02
Regular price
$1.07
Sale price
$1.02
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.02 | $1.02 |
| 15+ | $0.98 | $14.70 |
| 25+ | $0.96 | $24.00 |
| 50+ | $0.91 | $45.50 |
| 100+ | $0.80 | $80.00 |
| N+ | $0.16 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 74ACT |
| Packaging | Tube | |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC |
| Supplier Device Package | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
MC74ACT86DG.pdf
×
