onsemi MC74HC109N

Skip to product information
1 of 1

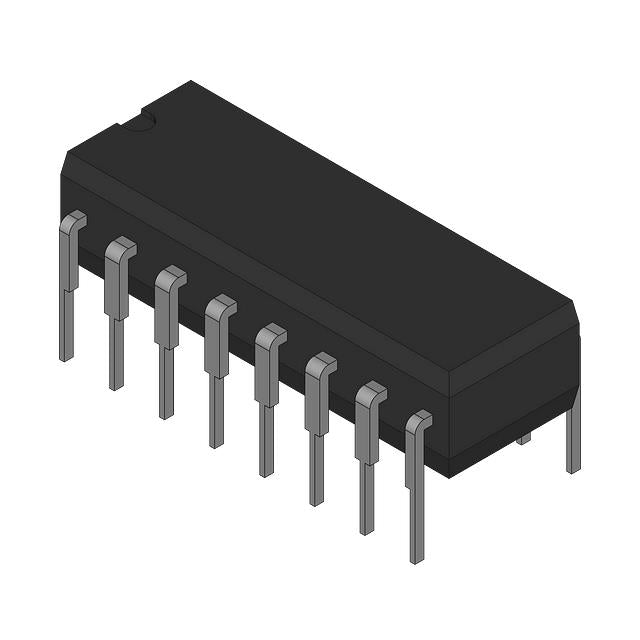

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $0.20
Regular price $0.21 Sale price $0.20
Sale Sold out
Quantity Unit Price Total Price
1 $0.20 $0.20
15+ $0.19 $2.85
25+ $0.19 $4.75
50+ $0.18 $9.00
100+ $0.16 $16.00
N+ $0.03 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer onsemi
Product Series 74HC
Packaging Bulk |
Function Set(Preset) and Reset
Type JK Type
Output Type Complementary
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 60 MHz
Max Propagation Delay @ V, Max CL 31ns @ 6V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 5.2mA, 5.2mA
Voltage - Supply 2V ~ 6V
Current - Quiescent (Iq) 4 µA
Input Capacitance 10 pF
Operating Temperature -55°C ~ 125°C (TA)
Grade -
Qualification -
Mounting Type Through Hole
Package / Case 16-PDIP
Supplier Device Package 16-DIP (0.300", 7.62mm)
