onsemi MC74VHC1GT50MU1TCG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.47 | $1.47 |
| 15+ | $1.43 | $21.45 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.32 | $66.00 |
| 100+ | $1.16 | $116.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 74VHC |
| Packaging | Factory | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-UDFN (1.45x1) |
| ROHS |  |

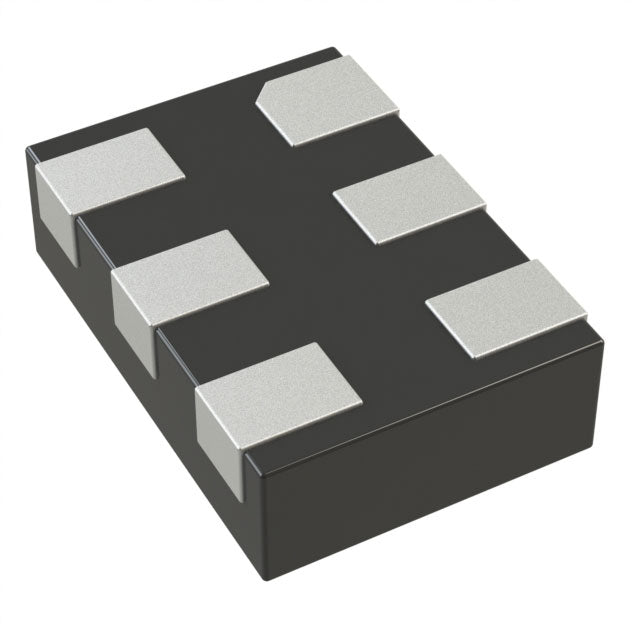

The MC74VHC1GT50MU1TCG is a high-speed non-inverting buffer from onsemi, part of the 74VHC logic family. It operates over a wide 2V to 5.5V supply range, providing excellent flexibility. Each channel can source or sink 8mA. The 3-State output allows for bus-oriented applications. It is available in a compact 6-UFDFN package and supports an extended temperature range of -55°C to 125°C. This buffer is ideal for space-constrained, high-reliability applications such as automotive and industrial systems.
- Extended Temperature Range (-55°C to 125°C): Suitable for harsh automotive and industrial environments.
- Ultra-Compact 6-UFDFN Package: Saves critical board space in portable and wearable devices.
- Wide 2V to 5.5V Supply Range: Ensures compatibility with both 3.3V and 5V systems, simplifying design.
- 3-State Output: Allows for direct connection to shared data buses, preventing signal contention.
Compact Signal Buffering
The tiny 6-UFDFN package makes it ideal for space-constrained applications like wearables and IoT devices, where board space is at a premium.
Level Shifting in Portable Devices
Its 2V to 5.5V range allows it to shift signals between 3.3V and 5V components in battery-powered devices.
Automotive Sensor Interfacing
With an extended temperature range of -55°C to 125°C, it can buffer sensor signals in automotive ECUs, ensuring reliable operation in harsh environments.
Industrial Control Logic
In industrial settings, this buffer can condition and drive control signals from microcontrollers to actuators, providing robust signal transmission.
Medical Device Signal Conditioning
Its small size and wide temperature range make it suitable for medical devices that require reliable signal buffering in compact form factors.
FPGA Configuration Interfacing
It can buffer configuration signals to FPGAs, ensuring clean and reliable programming in prototyping and production systems.
- Q: What is the logic family of the MC74VHC1GT50MU1TCG?
- A: It belongs to the 74VHC logic family, known for high-speed CMOS with TTL-compatible inputs.
- Q: What is the function of this IC?
- A: It is a Buffer with Non-Inverting function, featuring 1 channel.
- Q: What type of output does it have?
- A: It features 3-State outputs, allowing for connection to shared buses.
- Q: What is the operating voltage range?
- A: It operates from 2V to 5.5V, making it versatile for various logic levels.
- Q: What is the output current capability?
- A: It can source and sink 8mA of current per channel.
- Q: What package is available?
- A: It comes in a compact 6-UFDFN package.
