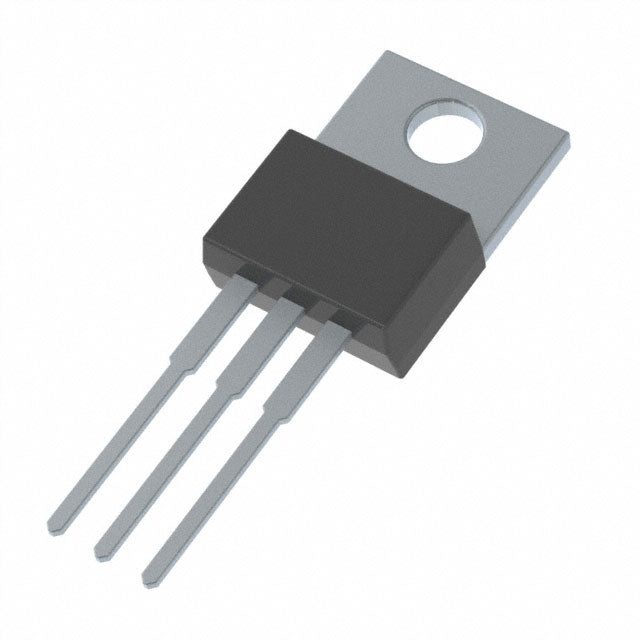

MCC (Micro Commercial Components) MC7805CT-BP-HF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $0.30 | $4.50 |
| 25+ | $0.30 | $7.50 |
| 50+ | $0.28 | $14.00 |
| 100+ | $0.25 | $25.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | MCC (Micro Commercial Components) |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 8 mA |
| Current - Supply (Max) | - |
| PSRR | 73dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
The MCC MC7805CT-BP-HF is a robust 1.5A linear regulator providing a fixed 5V output. With a dropout voltage of 2V at 1A and a quiescent current of 8mA, it delivers reliable performance for a wide range of applications. The TO-220AB package ensures excellent thermal dissipation, while 73dB PSRR at 120Hz provides clean power for analog circuits.
- High Current Capacity: 1.5A output for demanding loads.
- Excellent Ripple Rejection: 73dB PSRR at 120Hz for clean DC.
- Thermal Efficiency: TO-220 package dissipates heat effectively.
- Wide Availability: Standard 5V regulator with proven reliability.
General-Purpose Power Supplies
The 1.5A output and 5V fixed voltage make it ideal for bench power supplies and lab equipment.
Motor Driver Circuits
High current capability supports logic and gate driver circuits in small DC motor controllers.
Audio Amplifier Pre-Regulation
73dB PSRR at 120Hz effectively filters mains ripple, providing clean power for audio preamps.
Industrial Control Panels
TO-220 package with 1.5A capacity is suitable for powering relays and PLC I/O modules.
Battery Charger Circuits
Stable 5V output can be used as a reference or supply for charging control logic.
DIY Electronics Projects
Through-hole TO-220 package is easy to solder and breadboard, perfect for hobbyist and educational use.
- Q: What is the output voltage of the MC7805CT-BP-HF?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 1.5A.
- Q: What is the input voltage range?
- A: The recommended input voltage is 5V (typical operating point).
- Q: What is the dropout voltage?
- A: Dropout is 2V at 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is 8mA.
- Q: What package is available?
- A: It comes in a TO-220AB package.
