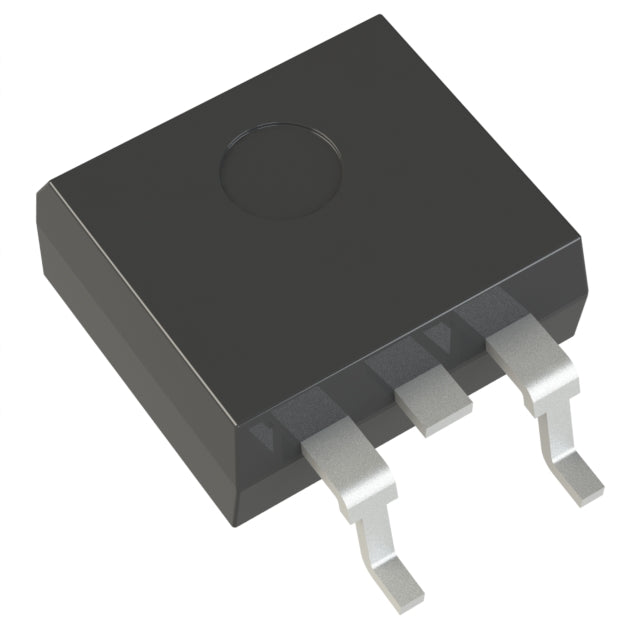

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
onsemi
MC7815ABD2TR4
MC7815ABD2TR4
Regular price
Dhs. 2.02
Regular price
Dhs. 2.14
Sale price
Dhs. 2.02
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.02 AED | Dhs. 2.02 AED |
| 15+ | Dhs. 1.97 AED | Dhs. 29.55 AED |
| 25+ | Dhs. 1.93 AED | Dhs. 48.25 AED |
| 50+ | Dhs. 1.82 AED | Dhs. 91.00 AED |
| 100+ | Dhs. 1.61 AED | Dhs. 161.00 AED |
| N+ | Dhs. 0.32 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK-3 |
Datasheets:
MC7815ABD2TR4.pdf
×
