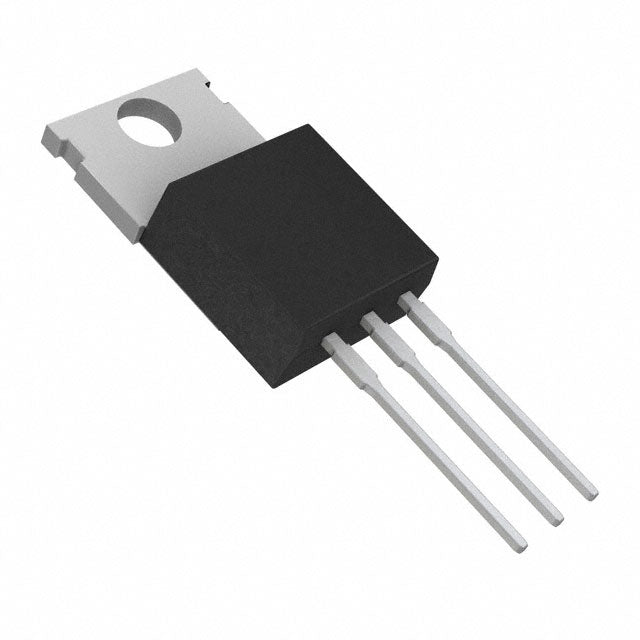

onsemi MC7815ABTG
Regular price
$1.19
Regular price
$1.25
Sale price
$1.19
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.19 | $1.19 |
| 15+ | $1.15 | $17.25 |
| 25+ | $1.13 | $28.25 |
| 50+ | $1.06 | $53.00 |
| 100+ | $0.94 | $94.00 |
| N+ | $0.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| ROHS |  |
MC7815ABTG.pdf
×
