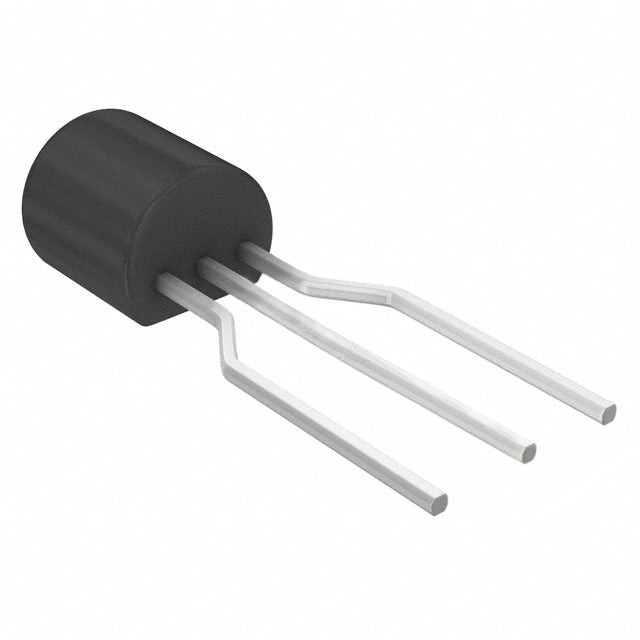

onsemi MC78L05ACPREG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.65 | $0.65 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 49dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Supplier Device Package | TO-92 (TO-226) |
| ROHS |  |
The MC78L05ACPREG from onsemi is a fixed 5V linear regulator offering 100mA output current in a TO-92 package. With a quiescent current of 6 mA and PSRR of 49dB at 120Hz, it provides clean, stable power for low-current applications. This through-hole component is easy to solder and widely used in hobbyist and professional designs alike.
- Through-Hole Convenience: TO-92 package ideal for breadboards and hand-soldered PCBs.
- Stable Output: Fixed 5V with 49dB PSRR reduces ripple from rectified AC sources.
- Wide Availability: Industry-standard pinout compatible with many equivalent regulators.
- Low Cost: Economical choice for high-volume consumer products.
Embedded System Power
Delivers a stable 5V supply for microcontrollers, EEPROMs, and peripheral ICs in embedded designs.
Industrial Control Panels
Regulates 5V for PLC I/O modules, timers, and sensor interface circuits in factory automation.
Consumer Electronics
Powers remote controls, small appliances, and toy circuits requiring a reliable 5V rail.
Test and Measurement
Provides a reference voltage for multimeters, oscilloscope probes, and bench power supplies.
Automotive Aftermarket
Used in car audio processors, dash cameras, and LED lighting controllers needing 5V logic power.
Prototyping and Education
Ideal for breadboard projects and educational kits due to its through-hole package and simple wiring.
- Q: What is the output voltage of the MC78L05ACPREG?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What is the PSRR?
- A: PSRR is 49dB at 120Hz.
- Q: What package is available?
- A: It comes in a TO-92 (TO-226) package.
