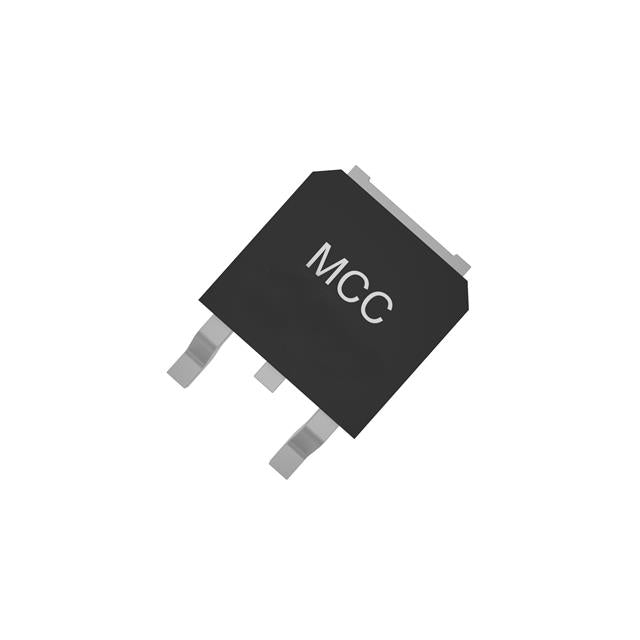

MCC (Micro Commercial Components) MC78M06CDT-TP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | MCC (Micro Commercial Components) |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 350mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
The MCC MC78M06CDT-TP is a fixed 6V LDO linear regulator capable of delivering 500mA. With a dropout voltage of 2V at 350mA and a quiescent current of 6 mA, it offers a straightforward solution for standard power regulation. The DPAK package ensures efficient heat transfer for reliable operation.
- High Current Capability: 500mA output supports a wide range of loads.
- Thermally Efficient: DPAK package dissipates heat effectively for sustained operation.
- Simple Fixed Output: No external resistor divider needed for 6V regulation.
- Widely Available: Standard package and pinout simplify PCB design.
Industrial Control Systems
The 500mA output and DPAK package with good thermal dissipation make it suitable for powering logic circuits and relays in industrial controllers.
Consumer Appliances
Provides a stable 6V rail for microcontrollers and sensors in home appliances, with robust current capability.
Automotive Aftermarket
Can regulate 12V battery voltage down to 6V for legacy audio or display modules, though input range must be verified.
Test & Measurement Equipment
Reliable 6V supply for analog front-ends and op-amp circuits in benchtop instruments.
Power Supply Modules
Used as a post-regulator in multi-rail power supplies to generate a clean 6V auxiliary output.
HVAC Controllers
Powers control boards and user interfaces in heating, ventilation, and air conditioning systems.
- Q: What is the output voltage?
- A: The fixed output voltage is 6V.
- Q: What is the maximum output current?
- A: It can provide up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 2V at 350mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: It is available in a DPAK package.
