MCC (Micro Commercial Components) MC7905CT-BP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.43 | $3.43 |
| 15+ | $0.79 | $11.85 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.73 | $36.50 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | MCC (Micro Commercial Components) |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Active |
| Output Type | Negative |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | -35V |
| Voltage - Output (Min/Fixed) | -5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 2 mA |
| Current - Supply (Max) | - |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| ROHS |  |

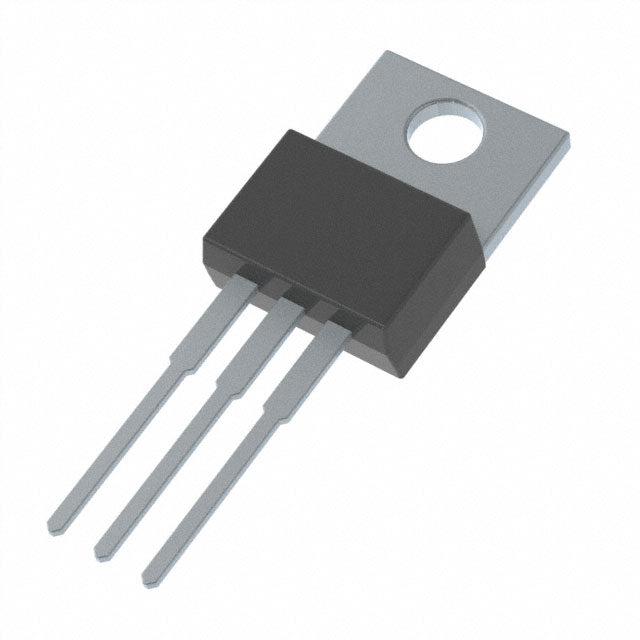

The MCC MC7905CT-BP is a robust fixed negative linear regulator delivering -5V at up to 1A. Housed in a TO-220AB package, it features a typical dropout of 1.1V at full load and 60dB ripple rejection at 120Hz. This regulator is a standard solution for negative power rails.
- Negative Voltage Regulation: Specifically designed to provide a stable -5V output, essential for dual-supply systems.
- High Current Capability: 1A output current supports a wide range of loads.
- Excellent Ripple Rejection: 60dB PSRR at 120Hz effectively filters AC line noise.
- Industry-Standard Package: TO-220AB package with a metal tab for easy heatsinking and robust thermal performance.
Negative Rail for Op-Amps
Provides a stable -5V rail for dual-supply operational amplifier circuits, essential in audio and instrumentation applications.
Industrial Power Supplies
Used in industrial equipment requiring a negative bias supply for analog-to-digital converters or sensors.
Telecommunication Systems
Supplies a clean -5V rail for legacy telecom interface circuits and line drivers.
Test & Measurement Equipment
Offers a reliable negative supply for benchtop instruments, ensuring accurate readings in multimeters and oscilloscopes.
Audio Preamplifiers
The 60dB PSRR at 120Hz effectively filters mains hum, providing a quiet negative supply for high-fidelity audio preamps.
Bipolar Power Supplies
When paired with a positive regulator, it creates a symmetrical ±5V supply for analog circuits, simplifying power design.
- Q: What is the output voltage of the MC7905CT-BP?
- A: It is a fixed negative regulator providing -5V output.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the official datasheet.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 1.1V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 2 mA.
- Q: What package is available?
- A: It comes in a TO-220AB package.
