MCC (Micro Commercial Components) MC79L06F-TP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | MCC (Micro Commercial Components) |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -30V |
| Voltage - Output (Min/Fixed) | -6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 71dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| ROHS |  |

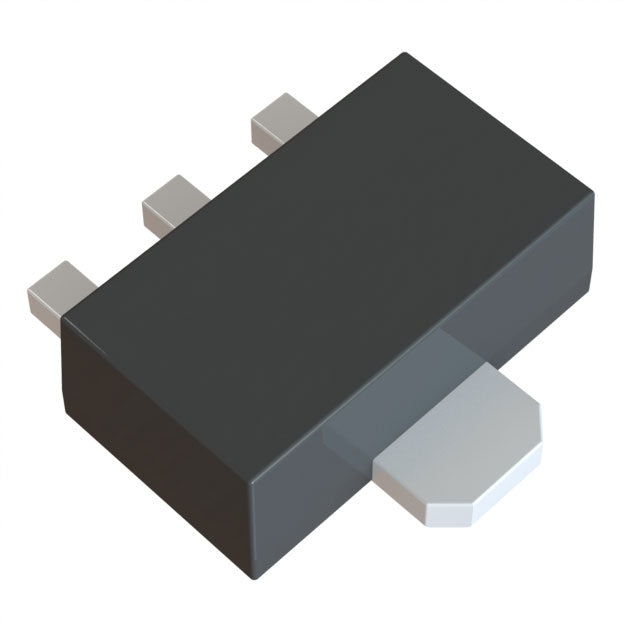

The MC79L06F-TP from MCC is a fixed -6V negative voltage regulator in a SOT-89 package. It delivers up to 100mA with a quiescent current of 6 mA. This regulator provides excellent 71dB PSRR at 120Hz, making it ideal for audio and precision analog applications requiring a clean negative supply rail.
- Negative Voltage Output: Provides a regulated -6V rail, essential for dual-supply analog circuits.
- High PSRR: 71dB at 120Hz ensures excellent rejection of power supply noise, critical for audio and instrumentation.
- Compact SOT-89 Package: Saves board space while providing adequate power dissipation for 100mA loads.
- Reliable Performance: MCC's proven design ensures stable operation across various load conditions.
Negative Rail for Op-Amps
The -6V output is ideal for powering operational amplifiers in dual-supply audio and instrumentation circuits, with 71dB PSRR ensuring clean negative rails.
Bipolar ADC/DAC Supplies
Provides a stable negative reference for analog-to-digital and digital-to-analog converters in precision measurement systems.
Bias Supplies for RF Circuits
Used to bias GaAs FET amplifiers and other RF components requiring a negative voltage, ensuring consistent performance.
Industrial Sensor Conditioning
Powers signal conditioning circuits for pressure and temperature sensors that require a negative supply for accurate output.
Audio Preamplifiers
Supplies a low-noise negative rail for high-fidelity audio preamps, minimizing distortion and hum.
Portable Instrumentation
The SOT-89 package and 100mA output make it suitable for compact, battery-powered devices needing a negative rail.
- Q: What is the output voltage of the MC79L06F-TP?
- A: The fixed output voltage is -6V.
- Q: What is the maximum output current?
- A: It can provide up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for absolute maximum ratings.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What is the PSRR performance?
- A: It offers 71dB PSRR at 120Hz, providing excellent ripple rejection.
- Q: What package is available?
- A: It is available in a SOT-89 package.
