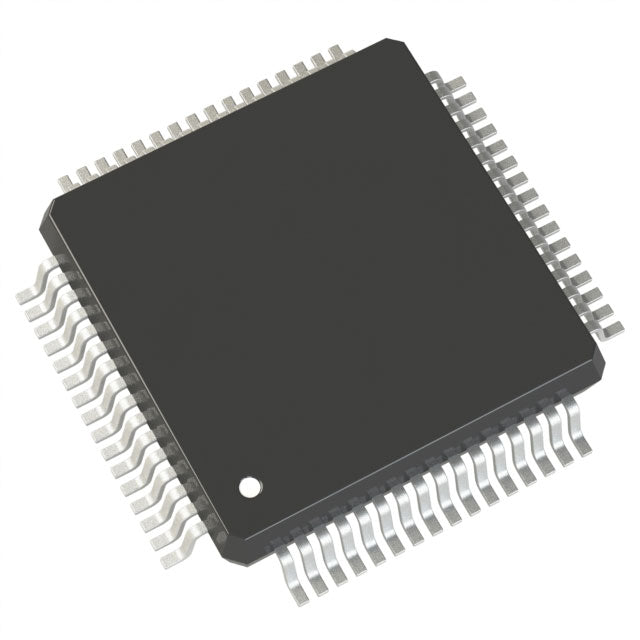

NXP MC908LK24CPBE - High-Performance 8-Bit Microcontroller with Integrated LCD Driver

The MC908LK24CPBE from NXP USA Inc. is a powerful and versatile HC08 series 8-bit microcontroller specifically engineered for embedded applications requiring advanced LCD control, precise PWM capabilities, and comprehensive peripheral integration. Featuring 24KB of Flash memory and 768 bytes of RAM, this microcontroller delivers exceptional reliability and performance for demanding industrial automation, automotive electronics, and consumer device applications.

Key Features & Technical Advantages

• 8MHz High-Speed Processing: Delivers efficient real-time execution for time-critical control applications and responsive user interfaces
• 24KB Flash Program Memory: Provides ample non-volatile storage for complex firmware, bootloaders, and application code with room for future updates
• 768 Bytes RAM: Sufficient data memory for variable storage, stack operations, and runtime data processing
• 40 Configurable I/O Pins: Extensive GPIO connectivity enables flexible interfacing with sensors, actuators, switches, and external peripherals
• Integrated LCD Segment Driver: Built-in LCD controller eliminates the need for external driver ICs, reducing BOM cost and PCB complexity
• Multiple Serial Communication Interfaces: I2C, IRSCI (infrared SCI), and SPI protocols support versatile system integration and sensor networks
• Wide Operating Voltage Range: 3V to 5.5V operation accommodates various power supply designs including battery-powered and regulated systems
• Extended Industrial Temperature Range: -40°C to 85°C qualification ensures reliable operation in harsh automotive and industrial environments
• 10-bit Analog-to-Digital Converter: 6-channel ADC provides precise analog signal measurement for sensor inputs and monitoring applications
• Advanced Peripherals: Includes Low Voltage Detection (LVD), Power-On Reset (POR), and multi-channel PWM for motor control and LED dimming
• Compact Surface Mount Package: 64-pin LQFP (10x10mm) footprint optimizes board space utilization
• Internal Oscillator: Reduces external component count and simplifies clock generation

Target Applications

The MC908LK24CPBE is ideally suited for a wide range of embedded system applications including:

• Automotive instrument clusters and dashboard displays
• Industrial control panels with segmented LCD interfaces
• Consumer appliances featuring user interface displays (washing machines, microwaves, HVAC controls)
• Battery-powered portable devices and handheld instruments
• Embedded systems requiring PWM-based motor control and speed regulation
• Smart metering and energy monitoring equipment
• Medical diagnostic devices and patient monitoring systems
• Building automation and HVAC control systems

Detailed Technical Specifications

Design Advantages & Integration Benefits

The MC908LK24CPBE's integrated LCD driver capability significantly reduces system complexity by eliminating external LCD controller ICs, lowering overall BOM costs and improving reliability. The comprehensive peripheral set including I2C, SPI, and infrared communication interfaces enables seamless integration with modern sensor ecosystems and communication networks. The wide voltage range and extended temperature qualification make this microcontroller particularly well-suited for automotive and industrial applications where environmental conditions can be challenging.

Development & Programming Support

NXP provides comprehensive development tools and software libraries for the HC08 family, including CodeWarrior IDE, debuggers, and reference designs. The Flash-based program memory supports in-system programming (ISP) and in-application programming (IAP), enabling field updates and flexible manufacturing processes.
