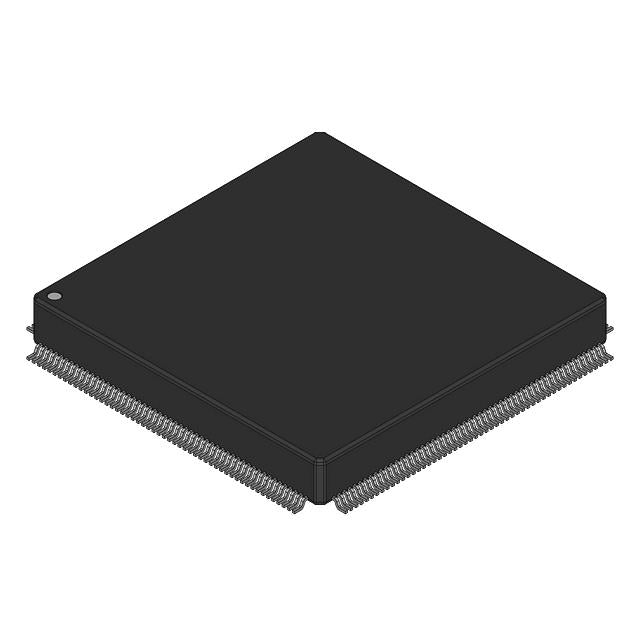

Motorola MCF5407CFT220
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $201.56 | $201.56 |
| 15+ | $46.36 | $695.40 |
| 25+ | $45.35 | $1,133.75 |
| 50+ | $42.83 | $2,141.50 |
| 100+ | $37.79 | $3,779.00 |
| N+ | $7.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Motorola |
| Product Series | MCF540x |
| Packaging | Bulk | NULL |
| Core Processor | ColdFire V4 |
| Core Size | 32-Bit |
| Speed | 220MHz |
| Connectivity | EBI/EMI, I2C, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 16 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-FQFP (28x28) |
| Package / Case | 208-BFQFP |
The Motorola MCF5407CFT220 is a 32-bit MCU based on the ColdFire V4 core at 220MHz. It includes 4KB RAM and operates from 1.65V to 3.6V. Housed in a 208-BFQFP package, it works from 0°C to 70°C. DMA and WDT features support reliable embedded control applications.
- High-performance 220MHz ColdFire V4 core: Handles complex tasks efficiently.
- Wide supply voltage (1.65V-3.6V): Flexible for various power rails.
- 208-BFQFP package: Offers many I/O pins for peripheral expansion.
- Proven architecture: ColdFire family has extensive software and tool support.
Legacy Industrial Controllers
The ColdFire V4 core at 220MHz provides ample performance for retrofitting older PLCs and process controllers.
Networking Appliances
With DMA and WDT, it can manage firewall and VPN functions in small office routers.
Test and Measurement Equipment
High-speed processing supports oscilloscopes and signal analyzers requiring fast data acquisition.
Point-of-Sale Systems
The 208-pin package and 3.6V operation make it suitable for POS terminals with multiple peripherals.
Embedded Computing Modules
Its 220MHz speed and 4KB RAM can run lightweight RTOS for single-board computers in education.
Telecom Infrastructure
Reliable operation in 0°C-70°C environments supports base station controllers and line cards.
- Q: What core does the MCF5407CFT220 use?
- A: It uses the ColdFire V4 core running at 220MHz.
- Q: What is the RAM size?
- A: It has 4K x 8 of RAM.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C (TA).
- Q: What package is available?
- A: It comes in a 208-BFQFP package.
- Q: What is the supply voltage?
- A: The supply voltage ranges from 1.65V to 3.6V.
