Motorola MCF5472ZP200

Skip to product information
1 of 1

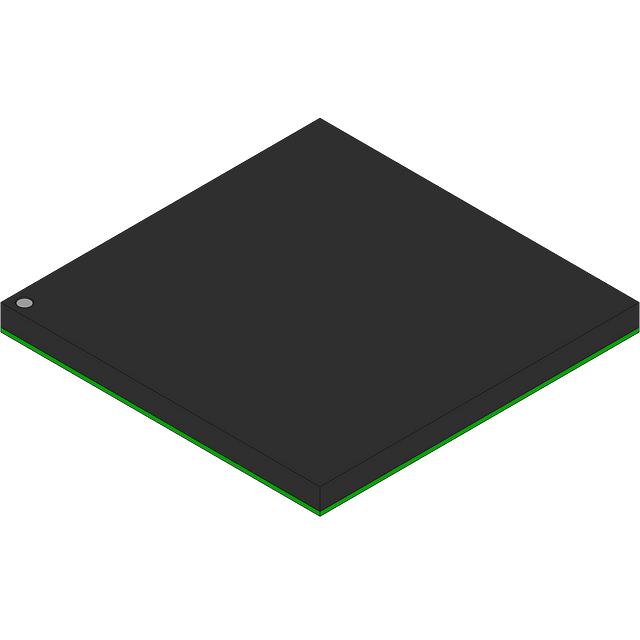

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $122.48
Regular price $30.62 Sale price $122.48
Sale Sold out
Quantity Unit Price Total Price
1 $122.48 $122.48
15+ $28.17 $422.55
25+ $27.56 $689.00
50+ $26.03 $1,301.50
100+ $22.97 $2,297.00
N+ $4.59 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Motorola
Product Series MCF547x
Packaging Bulk |
Core Processor Coldfire V4E
Core Size 32-Bit Single-Core
Speed 200MHz
Connectivity EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB
Peripherals DMA, PWM, WDT
Number of I/O 99
Program Memory Size -
Program Memory Type ROMless
EEPROM Size -
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 1.43V ~ 1.58V
Data Converters -
Oscillator Type External
Operating Temperature 0°C ~ 70°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 388-PBGA (27x27)
Package / Case 388-BBGA

The MCF5472ZP200 from Motorola is a high-performance Coldfire V4E MCU running at 200MHz. It features 32KB of RAM and operates at a low 1.43V-1.58V core voltage. The 388-BBGA package is designed for complex networking and industrial applications.

  • High-Speed Core: 200MHz Coldfire V4E delivers fast execution for demanding tasks.
  • Low Power Operation: 1.43V-1.58V core reduces power consumption in embedded systems.
  • Advanced DMA: Efficient data transfer without CPU intervention improves throughput.
  • Large Package: 388-BBGA supports complex pin routing and high-density designs.

Network Routers

The 200MHz Coldfire V4E core and DMA support high-throughput packet processing in edge routers.

Industrial HMI Panels

Its 32KB RAM and PWM modules enable responsive graphical interfaces and motor control in factory equipment.

Printers and Copiers

High-speed processing handles complex print rendering and paper path control.

Test and Measurement

The 388-BBGA package and 200MHz speed support precise timing in oscilloscopes and signal analyzers.

Medical Imaging

Low-voltage operation and DMA facilitate data transfer in ultrasound and X-ray systems.

Telecom Switches

Its robust WDT and 0°C-70°C range ensure reliable operation in central office equipment.

Q: What core does the MCF5472ZP200 use?
A: It uses the Coldfire V4E core at 200MHz.
Q: What is the supply voltage?
A: It operates from 1.43V to 1.58V, a low-voltage design.
Q: How much RAM is available?
A: It has 32K x 8 of RAM.
Q: What package is it in?
A: It comes in a 388-BBGA package.
