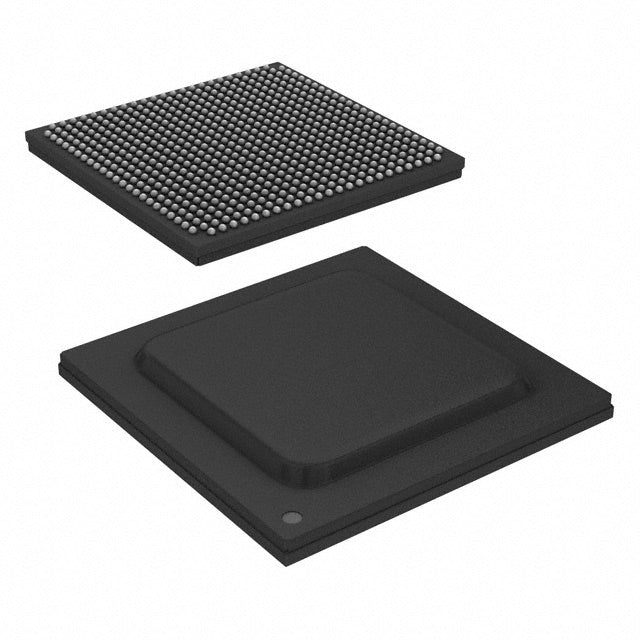

NXP USA Inc. MCIMX6X1EVK10AC

NXP MCIMX6X1EVK10AC i.MX6SX Microprocessor Overview

The MCIMX6X1EVK10AC is a high-performance, industrial-grade microprocessor from NXP's i.MX6SX series, designed for embedded applications requiring robust processing power, multimedia capabilities, and advanced connectivity. This dual-core solution combines an ARM Cortex-A9 processor running at 1GHz with an ARM Cortex-M4 co-processor at 227MHz, delivering exceptional performance for real-time control and multimedia-rich applications.

Key Features and Benefits

• Dual-Core Architecture: ARM Cortex-A9 (1GHz) for application processing and ARM Cortex-M4 (227MHz) for real-time tasks, enabling efficient workload distribution
• Advanced Multimedia Support: Integrated NEON MPE (Media Processing Engine) for accelerated audio, video, and graphics processing
• Industrial-Grade Reliability: Wide operating temperature range (-20°C to 105°C) suitable for harsh industrial environments
• Comprehensive Connectivity: Dual Gigabit Ethernet (10/100/1000Mbps), USB 2.0 with PHY, USB 2.0 OTG, and extensive peripheral interfaces
• Enterprise-Level Security: Multiple security features including ARM TrustZone, Cryptographic Acceleration and Assurance Module (CAAM), High Assurance Boot (A-HAB), and Secure Non-Volatile Storage (SNVS)
• Flexible Memory Support: Compatible with LPDDR2, LVDDR3, and DDR3 RAM controllers for versatile system design
• Rich Interface Options: LCD controller, keypad interface, AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, and UART

Ideal Applications

The MCIMX6X1EVK10AC is perfectly suited for industrial automation, medical devices, automotive infotainment systems, smart home gateways, industrial IoT edge devices, human-machine interfaces (HMI), and portable instrumentation requiring both high performance and low power consumption.

Performance Advantages

The heterogeneous dual-core architecture of the MCIMX6X1EVK10AC enables optimal task distribution between the high-performance Cortex-A9 and the real-time Cortex-M4 processor. This design allows developers to run Linux or Android on the Cortex-A9 while simultaneously executing real-time control tasks on the Cortex-M4, eliminating the need for external microcontrollers in many applications.

The integrated NEON SIMD (Single Instruction Multiple Data) engine accelerates multimedia processing, making this microprocessor ideal for applications requiring video encoding/decoding, image processing, and audio DSP functions. Combined with the dual Gigabit Ethernet interfaces, the MCIMX6X1EVK10AC excels in network-intensive applications such as industrial gateways, network-attached storage (NAS), and edge computing devices.

Security and Reliability

Security is paramount in modern embedded systems, and the MCIMX6X1EVK10AC delivers comprehensive protection through multiple hardware-based security features. ARM TrustZone technology creates isolated secure and non-secure execution environments, while the Cryptographic Acceleration and Assurance Module (CAAM) provides hardware acceleration for encryption, decryption, and authentication operations. High Assurance Boot (A-HAB) ensures that only authenticated firmware can execute on the device, protecting against unauthorized code execution and malware.

Development and Integration Support

NXP provides extensive development tools and software support for the i.MX6SX series, including board support packages (BSPs) for Linux, Android, and real-time operating systems (RTOS). The comprehensive SDK includes drivers, middleware, and example applications to accelerate time-to-market for your embedded projects.
