Microchip Technology MCP14A0305-E/MNY
Regular price
$3.64
Regular price
$0.91
Sale price
$3.64
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.64 | $3.64 |
| 15+ | $0.84 | $12.60 |
| 25+ | $0.82 | $20.50 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

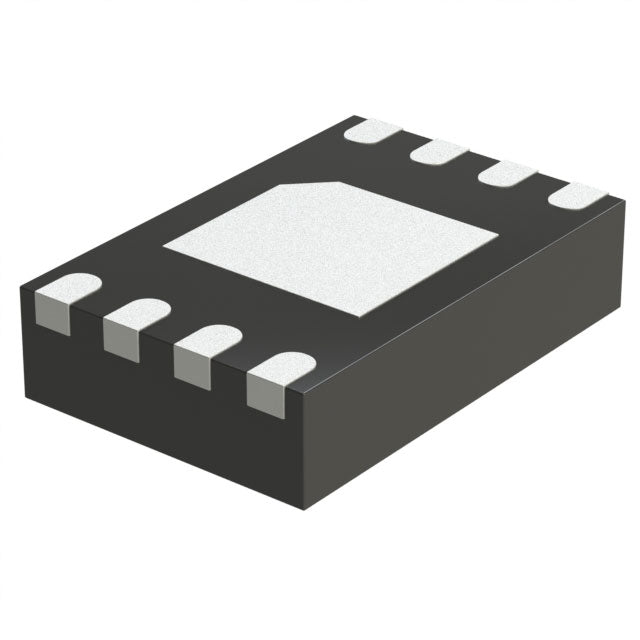

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| ROHS |  |
MCP14A0305-E/MNY.pdf
×
