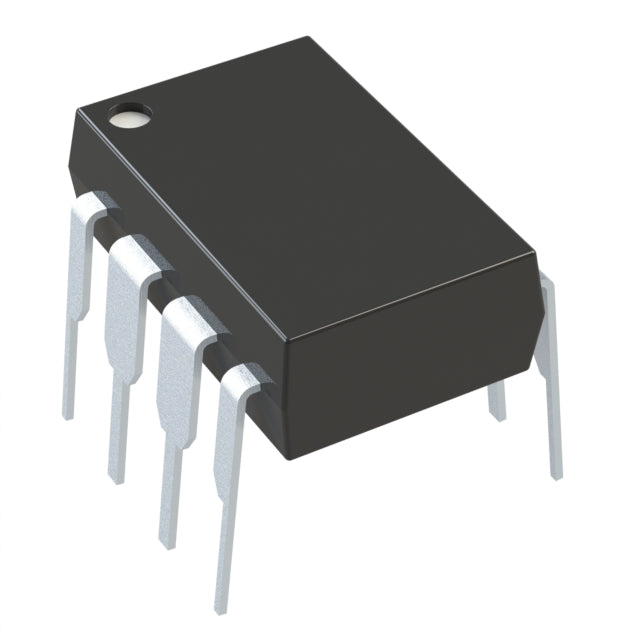

Microchip Technology MCP14E5-E/P
Regular price
$2.50
Regular price
$2.63
Sale price
$2.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.50 | $2.50 |
| 15+ | $2.42 | $36.30 |
| 25+ | $2.37 | $59.25 |
| 50+ | $2.24 | $112.00 |
| 100+ | $1.97 | $197.00 |
| N+ | $0.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 15ns, 18ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
MCP14E5-E/P.pdf
×
