Microchip Technology MCP1754ST-1802E/MC
Regular price
$1.12
Regular price
$0.28
Sale price
$1.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.12 | $1.12 |
| 15+ | $0.26 | $3.90 |
| 25+ | $0.25 | $6.25 |
| 50+ | $0.24 | $12.00 |
| 100+ | $0.21 | $21.00 |
| N+ | $0.04 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 72dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

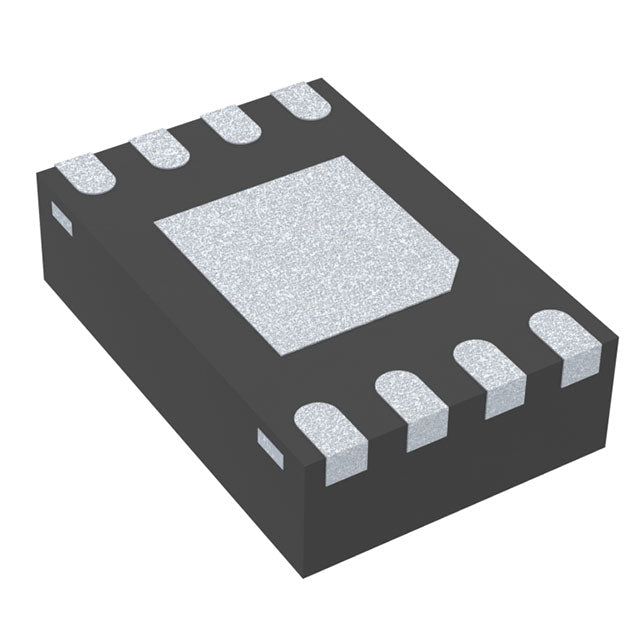

| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| ROHS |  |
The Microchip MCP1754ST-1802E/MC is a fixed 1.8V LDO regulator delivering 150mA. With 90µA quiescent current and 72dB PSRR at 1kHz, it offers excellent noise performance for digital and analog circuits. The 8-DFN package is ideal for space-constrained designs.
- 72dB PSRR at 1kHz provides superior noise rejection.
- 90µA quiescent current reduces power consumption.
- 0.5V dropout at 150mA ensures efficient operation.
- 8-DFN package offers a compact footprint.
- 150mA output is suitable for low-power digital ICs.
FPGA Core Supply
1.8V output with 150mA supports low-power FPGA cores in portable instrumentation.
DSP and MCU I/O
Stable 1.8V rail for digital signal processors and microcontroller I/O banks.
Memory Modules
Powers DDR3L/DDR4 VTT and VDDQ rails with 72dB PSRR at 1kHz for reliable data integrity.
Wireless Charging Receivers
Low dropout of 0.5V at 150mA maintains regulation during load transients.
Portable Audio Players
Clean 1.8V supply for DACs and op-amps, minimizing noise in audio paths.
Battery Management ICs
Provides a stable reference for fuel gauges and protection circuits in Li-ion packs.
- Q: What is the output voltage?
- A: Fixed 1.8V output.
- Q: What is the maximum output current?
- A: 150mA.
- Q: What is the input voltage range?
- A: Input voltage is 1.8V (typical for this fixed version).
- Q: What is the dropout voltage?
- A: 0.5V at 150mA load.
- Q: What is the quiescent current?
- A: 90µA.
- Q: What package is available?
- A: 8-DFN (2x3mm).
Base Product Number ：
MCP1754ST-1802E
MCP1754ST-1802E/MC.pdf
