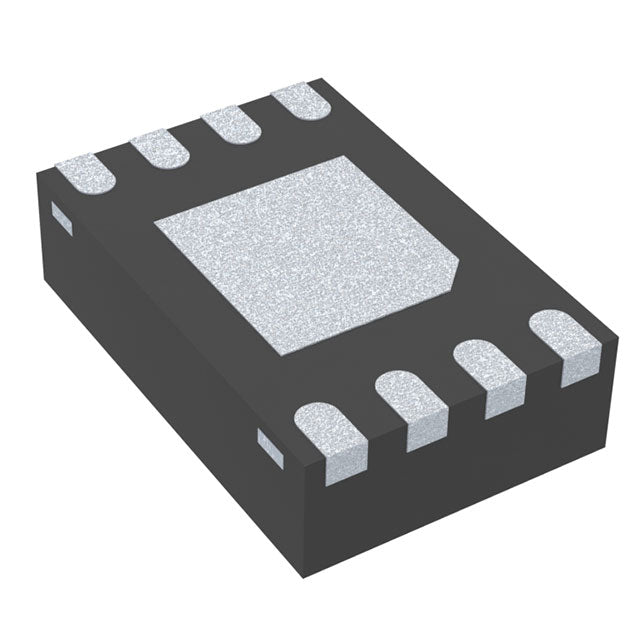

Microchip Technology MCP1754ST-5002E/MC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.73 | $0.73 |
| 15+ | $0.71 | $10.65 |
| 25+ | $0.69 | $17.25 |
| 50+ | $0.65 | $32.50 |
| 100+ | $0.58 | $58.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 72dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| ROHS |  |
The MCP1754ST-5002E/MC from Microchip Technology is a low-dropout linear regulator delivering a fixed 5.0V output at up to 150mA. With a dropout voltage of 0.5V and quiescent current of 90µA, it balances performance and efficiency. The device features excellent PSRR of 72dB at 1kHz, making it suitable for noise-sensitive applications. Packaged in a compact 8-DFN (2x3), it is ideal for space-constrained designs.
- Low Noise Operation: 72dB PSRR at 1kHz minimizes power supply ripple for sensitive circuits.
- Compact Footprint: 8-DFN (2x3) package saves valuable PCB area.
- Low Quiescent Current: 90µA IQ helps extend battery life in portable devices.
- Stable 5V Output: Reliable regulation for mixed-signal and digital systems.
Battery-Powered Microcontrollers
Provides a stable 5V rail for MCUs, with 90µA quiescent current to preserve battery life.
Sensor Signal Conditioning
High 72dB PSRR at 1kHz ensures clean power for precision analog sensors.
Portable Instrumentation
150mA output is sufficient for op-amps and ADCs, while the small 2x3 DFN saves board space.
Industrial Process Control
Reliable 5V regulation for industrial sensors and transmitters, with low dropout for 5V to 3.3V conversions.
Consumer Electronics
Ideal for audio codecs and interface ICs requiring a low-noise 5V supply.
Automotive Interior Lighting
Stable output for LED drivers and control logic in infotainment systems.
