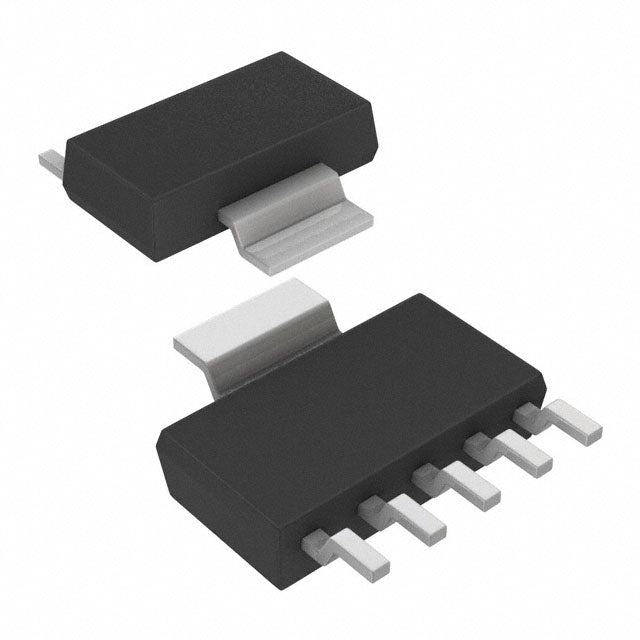

Microchip Technology MCP1754T-1802E/DC
Regular price
$1.36
Regular price
$0.34
Sale price
$1.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $0.31 | $4.65 |
| 25+ | $0.31 | $7.75 |
| 50+ | $0.29 | $14.50 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 72dB (1kHz) |
| Control Features | Power Good, Shutdown |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The Microchip MCP1754T-1802E/DC is a fixed 1.8V LDO regulator capable of 150mA output. It features a high PSRR of 72dB at 1kHz, making it ideal for noise-sensitive applications. The SOT-223-5 package offers excellent thermal performance.
- High Noise Rejection: 72dB PSRR at 1kHz ensures clean output for sensitive analog circuits.
- Higher Current Capacity: 150mA supports more demanding loads than typical low-power LDOs.
- Low Dropout: 0.5V at 150mA maximizes efficiency in battery systems.
- Thermally Efficient Package: SOT-223-5 dissipates heat effectively for reliable operation.
Digital IC Power Supply
The 1.8V output is perfect for low-voltage microcontrollers, FPGAs, and DSPs requiring 150mA.
RF and Wireless Systems
High PSRR of 72dB at 1kHz ensures clean power for RF transceivers, reducing noise interference.
Battery-Powered Audio Devices
Low dropout and 150mA support portable audio codecs and amplifiers.
Industrial Sensors
Stable 1.8V rail for precision analog-to-digital converters in factory automation.
Automotive Electronics
SOT-223-5 package handles thermal demands in engine control units.
Portable Medical Monitors
Reliable power for wearable heart rate and SpO2 sensors.
- Q: What is the output voltage of the MCP1754T-1802E/DC?
- A: The fixed output voltage is 1.8V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 90 µA.
- Q: What is the PSRR?
- A: The power supply rejection ratio is 72dB at 1kHz.
Base Product Number ：
MCP1754T-1802E
MCP1754T-1802E/DC.pdf
