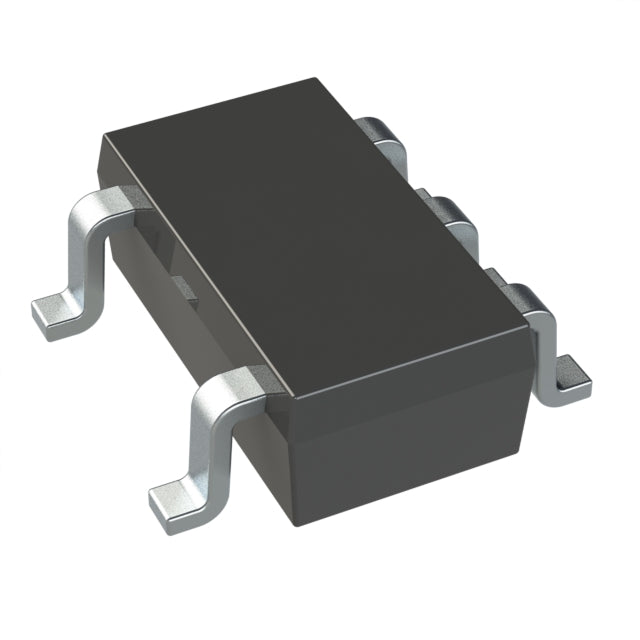

Microchip Technology MCP1754T-3302E/OTVAO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 μA |
| Current - Supply (Max) | 250 μA |
| PSRR | 72dB (1kHz) |
| Control Features | Power Good, Shutdown |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The MCP1754T-3302E/OTVAO is a fixed 3.3V LDO from Microchip Technology, offering 150mA output with a dropout of 0.5V. It features a quiescent current of 90 μA and excellent PSRR of 72dB at 1kHz, making it suitable for noise-sensitive analog circuits. The SOT-23-5 package is ideal for space-constrained designs.
- High PSRR: 72dB at 1kHz ensures clean output for audio/RF.
- Compact Size: SOT-23-5 saves board space.
- Low Dropout: 0.5V dropout improves efficiency.
- Stable 3.3V: Fixed output simplifies design.
Portable Audio Players
High PSRR of 72dB at 1kHz reduces power supply noise, preserving audio clarity.
Wireless Modules
150mA is sufficient for RF transceivers, with stable 3.3V for consistent performance.
Smart Home Sensors
Compact SOT-23-5 package fits small PCBs, while low dropout extends battery life.
Medical Monitoring
Reliable 3.3V rail for low-power biosensors, ensuring accurate readings.
Handheld Instruments
Low quiescent current and small size make it ideal for portable meters.
Consumer Electronics
Provides clean power for microcontrollers and peripherals in compact devices.
- Q: What is the output voltage?
- A: Fixed 3.3V.
- Q: What is the maximum current?
- A: 150mA.
- Q: What is the input voltage range?
- A: Not specified in provided data.
- Q: What is the dropout voltage?
- A: 0.5V at 150mA.
- Q: What is the quiescent current?
- A: 90 μA.
- Q: What package is available?
- A: SOT-23-5.
