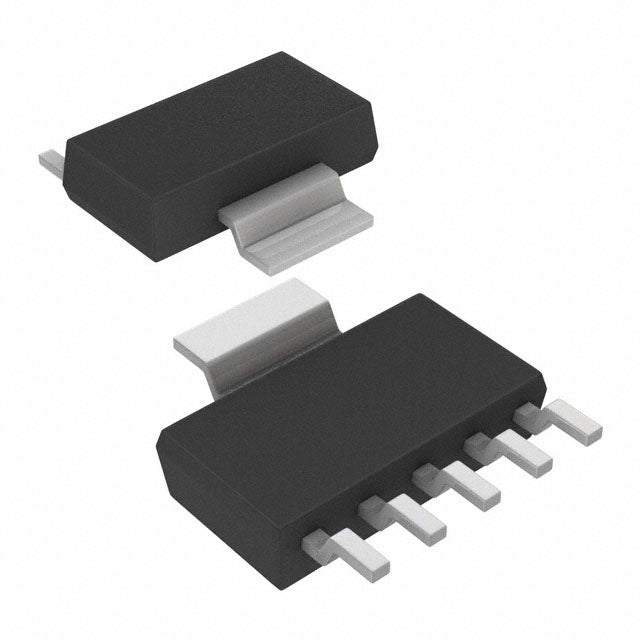

Microchip Technology MCP1754T-5002E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 72dB (1kHz) |
| Control Features | Power Good, Shutdown |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The MCP1754 from Microchip Technology is a fixed 5V low dropout linear regulator capable of delivering 150mA. It features a low quiescent current of 90µA and a dropout voltage of just 0.5V at full load. Housed in a SOT-223-5 package, it offers excellent ripple rejection of 72dB at 1kHz, making it suitable for noise-sensitive applications.
- Extended Battery Life: Low 90µA quiescent current minimizes power draw in standby mode.
- High Noise Immunity: 72dB PSRR at 1kHz filters out power supply noise for clean output.
- Wide Input Flexibility: Supports input voltages up to 16V, accommodating various power sources.
- Compact Design: SOT-223-5 package saves board space while providing thermal performance.
Battery-Powered Devices
With a low quiescent current of 90µA and a wide input range up to 16V, this LDO is ideal for battery-operated equipment where extending battery life is critical.
Automotive Electronics
The 5V fixed output and 150mA capability make it suitable for powering sensors and microcontrollers in automotive systems, especially where input voltage can fluctuate.
Industrial Control Systems
Its stable 5V output with 72dB PSRR at 1kHz ensures clean power for analog and digital circuits in noisy industrial environments.
Portable Instrumentation
The SOT-223-5 package and low dropout of 0.5V allow for efficient regulation in compact handheld measurement tools.
Communication Modules
Provides a regulated 5V rail for RF modules and interface ICs, reducing noise and ensuring reliable data transmission.
- Q: What is the output voltage of the MCP1754T-5002E/DC?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.0V to 16V (based on 5V output).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 90µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
