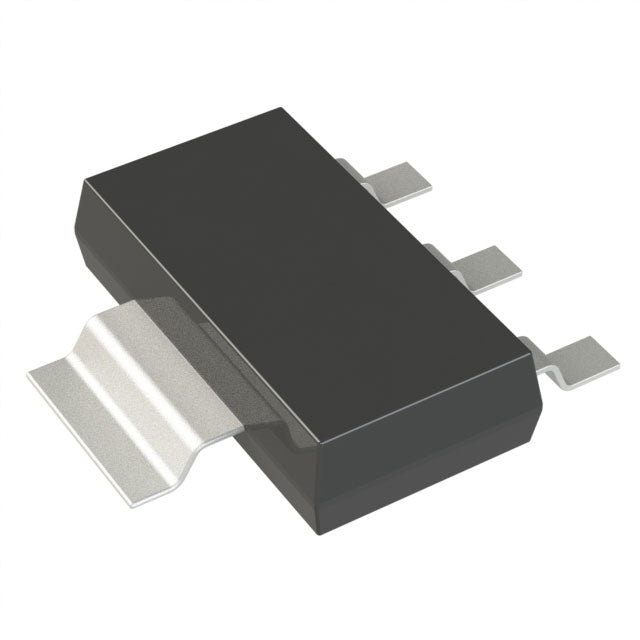

Microchip Technology MCP1804T-2502I/DB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.9V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 105 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| ROHS |  |
The MCP1804T-2502I/DB from Microchip Technology is a fixed 2.5V low dropout linear regulator capable of delivering 100mA. It features a low quiescent current of 105 µA, making it ideal for battery-operated applications. The device offers 50dB PSRR at 1kHz for clean output and comes in a compact SOT-223-3 package.
- Extended Battery Life: Ultra-low 105 µA quiescent current minimizes power draw in standby mode.
- Stable Output: 50dB PSRR at 1kHz rejects supply noise for sensitive loads.
- Compact Footprint: SOT-223-3 package saves PCB space in space-limited designs.
- Reliable Protection: Built-in thermal shutdown and current limiting safeguard the regulator.
Battery-Powered Devices
The low 105 µA quiescent current extends battery life in portable electronics like remote controls and sensors.
Microcontroller Power Supply
Provides a stable 2.5V rail for low-power MCUs, ensuring reliable operation with up to 100mA load.
Industrial Sensor Interfaces
With 50dB PSRR at 1kHz, it filters noise from industrial power lines, maintaining accurate sensor readings.
Wearable Electronics
The compact SOT-223-3 package fits space-constrained wearable designs while delivering clean power.
Reference Voltage Source
Its fixed 2.5V output can serve as a precision reference for ADC circuits in measurement equipment.
Automotive Interior Modules
Operates reliably in automotive environments, providing regulated power for infotainment and dashboard modules.
- Q: What is the output voltage of the MCP1804T-2502I/DB?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.9V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 105 µA.
- Q: What package is available?
- A: It comes in a SOT-223-3 package.
