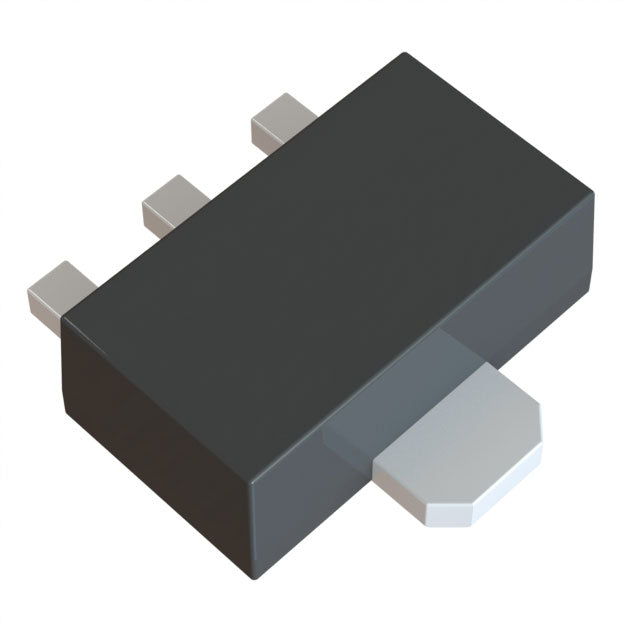

Microchip Technology MCP1804T-2502I/MB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.9V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 105 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| ROHS |  |
The MCP1804T-2502I/MB is a fixed 2.5V low dropout linear regulator from Microchip Technology, capable of delivering 100mA of output current. It features a low quiescent current of 105 µA and a dropout voltage of 1.9V at full load. Housed in a compact SOT-89-3 package, this LDO provides a stable and clean power supply for various low-power applications.
- Low Power Consumption: 105 µA quiescent current extends battery life in portable devices.
- Stable Output: 50dB PSRR at 1kHz filters noise for sensitive electronics.
- Compact Package: SOT-89-3 offers a small footprint for space-constrained designs.
- Reliable Performance: 100mA output current is suitable for a wide range of low-power loads.
Battery-Powered Devices
With a low quiescent current of 105 µA and a 2.5V output, this LDO is ideal for extending battery life in portable electronics like remote controls and sensors.
Microcontroller Power Supply
Provides a stable 2.5V rail for low-power MCUs, ensuring reliable operation with its 50dB PSRR at 1kHz to filter supply noise.
Industrial Control Systems
The SOT-89-3 package and 100mA output make it suitable for powering industrial sensors and control logic that require a clean, regulated voltage.
Audio Equipment
Its 50dB PSRR helps minimize power supply hum, making it suitable for low-power audio circuits needing a quiet 2.5V supply.
Wearable Technology
The compact SOT-89-3 footprint and efficient operation support space-constrained wearable designs that demand low power consumption.
- Q: What is the output voltage of the MCP1804T-2502I/MB?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.9V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 105 µA.
- Q: What package is available?
- A: It comes in a SOT-89-3 package.
