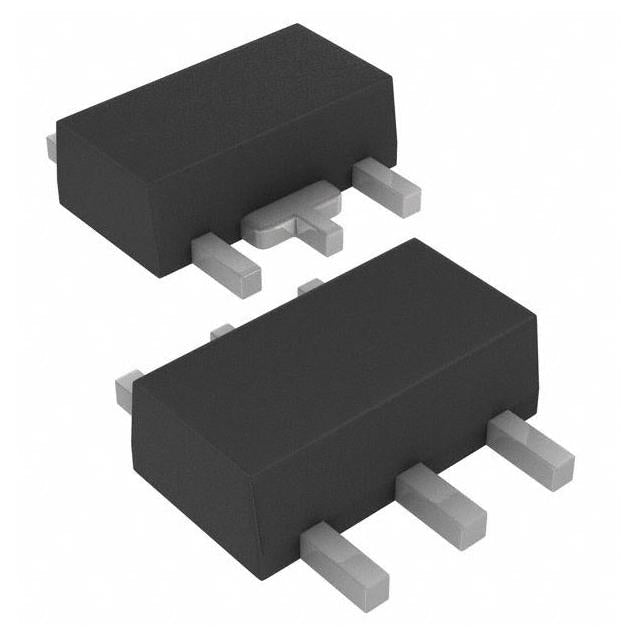

Microchip Technology MCP1804T-3002I/MT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.7V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 105 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Microchip MCP1804T-3002I/MT is a fixed 3.0V LDO linear regulator providing 150mA output current in a SOT-89-5 package. With a quiescent current of 105 µA and 50dB PSRR at 1kHz, it offers reliable performance for industrial and consumer applications. The 1.7V dropout at 100mA accommodates higher input voltages.
- Wide Input Tolerance: 1.7V dropout allows operation from higher voltage rails with simple filtering.
- Robust Package: SOT-89-5 offers better thermal dissipation for continuous load operation.
- Stable Output: 50dB PSRR at 1kHz reduces supply noise in industrial environments.
- Proven Reliability: Microchip's automotive-grade manufacturing ensures long-term stability.
Automotive Power Rails
The SOT-89-5 package with 1.7V dropout handles wider input variations, making it suitable for 12V battery systems with pre-regulation.
Industrial Control Systems
Stable 3.0V output with 105 µA quiescent current powers PLC I/O modules and industrial sensors reliably.
Consumer Appliances
Provides clean 3.0V for microcontrollers in smart appliances, with 50dB PSRR filtering mains-borne noise.
Telecom Equipment
150mA capacity supports line drivers and interface ICs in networking gear, ensuring consistent performance.
LED Lighting Controllers
Regulates 3.0V for dimming control logic in LED drivers, with robust thermal performance from SOT-89 package.
Security Systems
Powers motion sensors and alarm controllers, with low dropout allowing operation from backup batteries.
- Q: What is the output voltage of the MCP1804T-3002I/MT?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.7V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 105 µA.
- Q: What package is available?
- A: It comes in a SOT-89-5 package.
