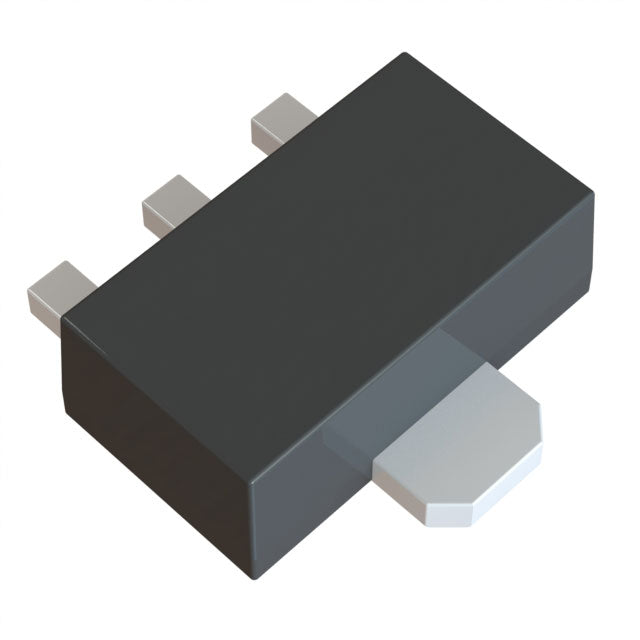

Microchip Technology MCP1804T-5002I/MB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 105 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| ROHS |  |
The MCP1804T-5002I/MB is a fixed 5V linear voltage regulator from Microchip Technology, delivering up to 150mA of output current. In a SOT-89-3 package, it features a low dropout voltage of 1.3V at 100mA and a quiescent current of 105µA. With 50dB PSRR at 1kHz, it ensures clean power for automotive and industrial applications.
- Low Dropout: 1.3V at 100mA enables operation from marginally higher input supplies.
- Compact SOT-89-3: Fits space-limited designs without sacrificing performance.
- Low Quiescent Current: 105µA minimizes power loss in battery-backed systems.
- Stable 5V Output: Ideal for 5V logic and analog circuits requiring precision.
Automotive Electronics
Regulates 5V for CAN transceivers and sensor interfaces, with 1.3V dropout ensuring operation during cold-crank conditions.
Industrial Sensors
Provides a stable 5V rail for pressure and temperature transmitters, with 50dB PSRR rejecting motor noise.
Smart Meters
Powers metering ICs and communication modules in utility meters, where low quiescent current reduces standby power.
Home Automation Controllers
Supplies 5V to relay drivers and MCUs in smart switches, ensuring reliable switching.
Portable Test Equipment
Regulates 5V for multimeters and oscilloscope probes, maintaining accuracy in field use.
LED Display Drivers
Provides logic power for LED matrix controllers, with the SOT-89-3 package fitting compact display boards.
- Q: What is the output voltage?
- A: The MCP1804T-5002I/MB provides a fixed 5V output.
- Q: What is the maximum output current?
- A: It can supply up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage is 5V (typical operation requires input above 6.3V for regulation).
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.3V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 105 µA.
- Q: What package is available?
- A: It comes in a SOT-89-3 package.
