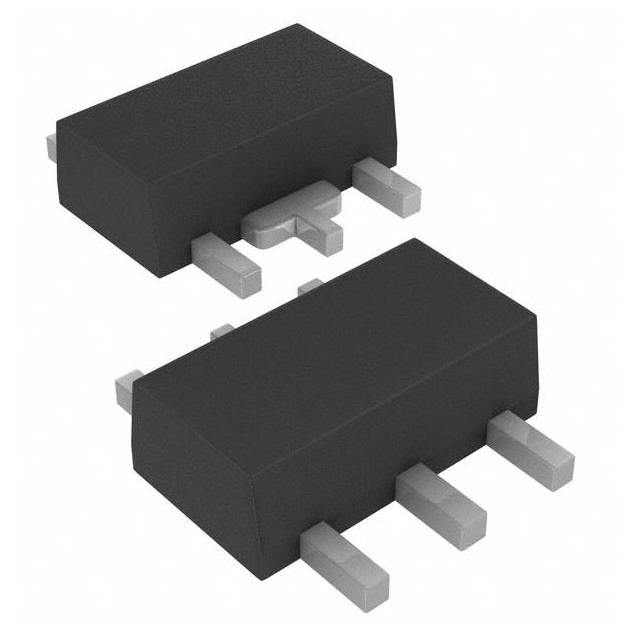

Microchip Technology MCP1804T-5002I/MT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 105 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The MCP1804T-5002I/MT from Microchip Technology is a fixed 5V LDO regulator offering 150mA output current. Featuring a 105µA quiescent current and 50dB PSRR at 1kHz, it provides clean, stable power for industrial and consumer applications. The SOT-89-5 package balances thermal performance with board space.
- Stable 5V Rail: Fixed output eliminates external resistor dividers, simplifying design.
- Low Power Consumption: 105µA quiescent current reduces idle power in always-connected devices.
- Good Ripple Rejection: 50dB PSRR at 1kHz filters switching noise from upstream converters.
- Thermally Efficient: SOT-89-5 package with tab for heat sinking supports higher ambient temperatures.
Home Appliance Control Units
The 150mA output and 5V rail are sufficient for MCU and relay drivers in washing machines and microwave ovens, with 105µA IQ for standby mode.
Industrial Process Controllers
SOT-89-5 package with good thermal dissipation supports 24V industrial loops stepping down to 5V for PLC I/O modules.
Smart Metering Systems
Stable 5V output powers metering ICs and communication modules in smart electricity and water meters, ensuring accurate measurement.
LED Lighting Drivers
Provides a clean 5V bias rail for PWM dimming controllers in LED drivers, reducing flicker and improving color consistency.
Security Cameras
Reliable 5V regulation for image sensors and IR LEDs in IP cameras, with low dropout for operation from 6V adapters.
- Q: What is the output voltage?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 1.3V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 105µA.
- Q: What package is available?
- A: It comes in a SOT-89-5 package.
