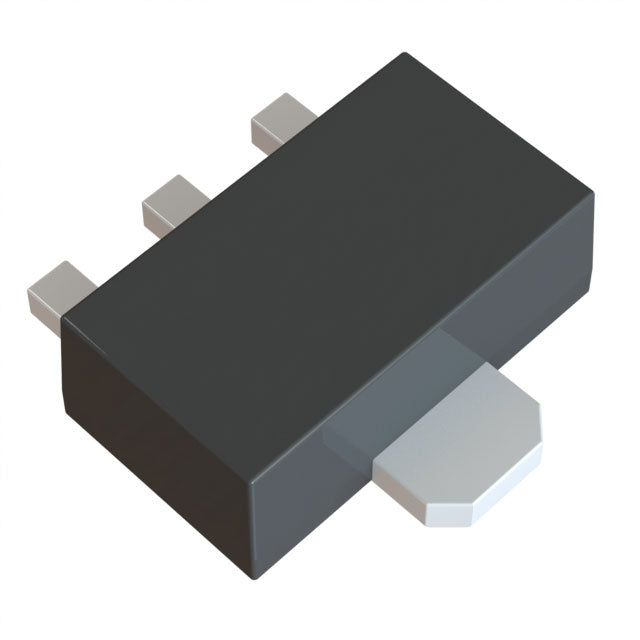

Microchip Technology MCP1804T-A002I/MB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.90 | $0.90 |
| 15+ | $0.87 | $13.05 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.81 | $40.50 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 10V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.95V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 115 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| ROHS |  |
The MCP1804T-A002I/MB from Microchip Technology is a fixed-output low dropout linear regulator delivering up to 150mA. It accepts input voltages up to 10V and features a low quiescent current of 115 µA, making it suitable for power-sensitive applications. The device offers 50dB PSRR at 1kHz and comes in a compact SOT-89-3 package.
- Extended Battery Life: Low 115 µA quiescent current minimizes standby power draw.
- Stable Output: 50dB PSRR at 1kHz filters supply noise for sensitive loads.
- Compact Design: SOT-89-3 package saves PCB space in space-constrained designs.
- Wide Input Range: Supports up to 10V input, accommodating various power sources.
Battery-Powered Devices
With a low quiescent current of 115 µA and a 150mA output, this LDO is ideal for extending battery life in portable electronics like remote controls and wireless sensors.
Automotive Interior Electronics
The 10V input range and stable output make it suitable for powering microcontrollers and sensors in automotive infotainment and body control modules.
Industrial Control Systems
Its SOT-89-3 package and 50dB PSRR at 1kHz help maintain clean power rails for analog sensors and PLC I/O stages in noisy industrial environments.
Wearable Health Monitors
The compact footprint and low dropout of 0.95V @ 100mA allow efficient regulation from a single Li-ion cell, supporting continuous health tracking.
Smart Home Hubs
This regulator provides a stable supply for Wi-Fi and Zigbee modules, ensuring reliable communication with minimal power loss.
- Q: What is the output voltage of the MCP1804T-A002I/MB?
- A: This is a fixed output LDO; the specific voltage is not listed in the provided data. Please refer to the official datasheet for the exact value.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the maximum input voltage?
- A: The maximum input voltage is 10V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.95V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 115 µA.
- Q: What package is available?
- A: This model comes in the SOT-89-3 package.
