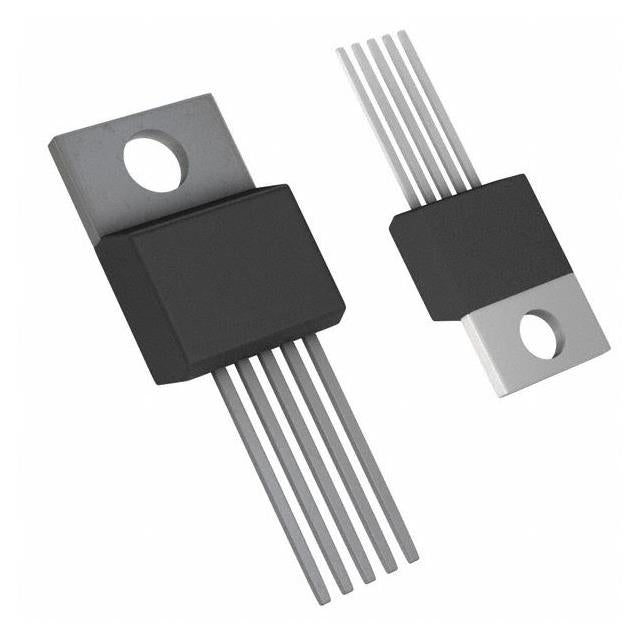

Microchip Technology MCP1825-0802E/AT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.43 | $1.43 |
| 15+ | $1.39 | $20.85 |
| 25+ | $1.36 | $34.00 |
| 50+ | $1.28 | $64.00 |
| 100+ | $1.13 | $113.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The Microchip MCP1825-0802E/AT is a 0.8V fixed-output LDO linear regulator capable of delivering 500mA. It features a low dropout voltage of 0.35V @ 500mA and a quiescent current of 220 µA. With a PSRR of 60dB at 100Hz, it provides clean power. The TO-220-5 package offers excellent thermal performance for high-power applications.
- Superior Thermal Performance: TO-220-5 package dissipates heat effectively.
- High Current: 500mA output for demanding loads.
- Low Dropout: 0.35V @ 500mA reduces power loss.
- Good PSRR: 60dB at 100Hz for noise rejection.
High-Power Audio Amplifiers
The TO-220-5 package provides superior heat dissipation, making it ideal for 0.8V rails in high-power audio systems.
Industrial Power Supplies
Robust thermal performance supports continuous operation in industrial power distribution units.
Automotive Engine Control Units
Withstands high temperatures and provides stable 0.8V for ECUs in harsh environments.
Server Power Management
Delivers 500mA with low dropout for server motherboard voltage regulation.
Renewable Energy Inverters
Reliable 0.8V supply for control circuits in solar and wind inverters.
Laboratory Power Supplies
Precise output voltage and high current make it suitable for benchtop power supply designs.
- Q: What is the output voltage of the MCP1825-0802E/AT?
- A: The fixed output voltage is 0.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage is 0.8V (typical operating range per datasheet).
- Q: What is the dropout voltage?
- A: Dropout is 0.35V @ 500mA.
- Q: What is the quiescent current?
- A: Quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in the TO-220-5 package.
